Amped Wireless

Amped Wireless High Power 8 dBi Omni-Directional Outdoor WiFi Antenna Kit

SKU: AWA8EX MFR: A8EX
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

About this item

The Amped Wireless High Power 8 dBi Omni-Directional Outdoor WiFi Antenna Kit is designed to increase the signal strength and range of your WiFi device in all directions. It works for most 2.4GHz 802.11b/g/n devices, such as routers, access points, adapters, repeaters and bridges. The high gain antenna increases antenna gain to 8 dBi and provides more powerful, 360 degree, point to multipoint WiFi coverage.

The A8EX replaces the antenna on your existing WiFi device and concentrates your WiFi device's signal in all directions to cover distances of up to 1.0 mile (1.6 km). To achieve this full range, you must have another high power outdoor antenna on the other end of your connection (second antenna not included). The connection must have no obstructions and must have line of sight. The High Power Outdoor Antenna Kit includes everything you need in order to mount the antenna outdoors on a wall or pole.

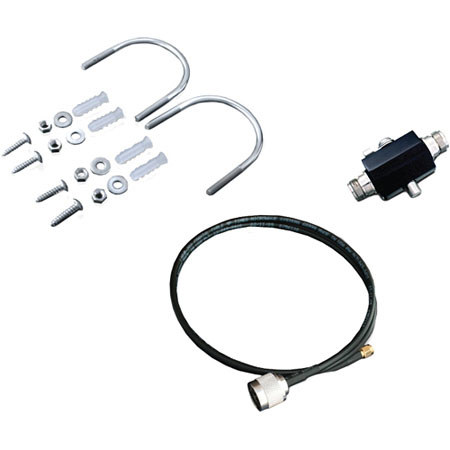

What's Included With This Item

  • Amped Wireless High Power 8 dBi Omni-Directional Outdoor WiFi Antenna
  • Wall / Pole Mounting Kit
  • Premium Surge Protector
  • 3' N-Plug to RP-SMA Jumper Cable
  • Setup Guide
  • Amped Wireless 1 Year Limited Warranty

Summary of Customer Reviews

(1)

Key Features

  • Omni-Directional Coverage: Concentrates the coverage of your wireless signal in all directions for maximum range and performance in a 360 degree radius
  • Compatibility: Works with all 2.4GHz IEEE 802.11b/g/n Wifi devices with detachable antennas and RJ-SMA or N-Type connectors
  • High Quality Build: The High Power Outdoor Antenna is built with corrosion resistant components and rugged weatherproof construction to ensure years of use outdoors
  • Safety: Includes a Premium Lightning Surge Protector to protect your home, office and networking equipment from dangerous lighting and electrical surges
  • Mount Anywhere: Wall and pole mounting kits allow for mounting and installation on multiple surfaces for various applications

Technical Specs

Wireless Standard IEEE 802.11b/g/n
Frequency Range 2.4 - 2.5 GHz
Antenna Gain 8 dBi
Antenna Connector N-Type Female
VSWR 2.0:1 Max
Antenna Pattern H Plane: 360 Degrees
V Plane: 15 Degrees
Polarization Linear, Vertical
Operating Temperature -40 Deg. F - 176 Deg. F
Lighting Protection DC Ground
Survival Wind Speed 135 miles / hr
Power Handling 50W
System Requirements 802.11b/g/n Wireless Device with detachable antenna (RJ-SMA or N-Type Female connector)
Premium 25ft Outdoor WiFi Antenna Cable (APC25EX)
