Amped Wireless

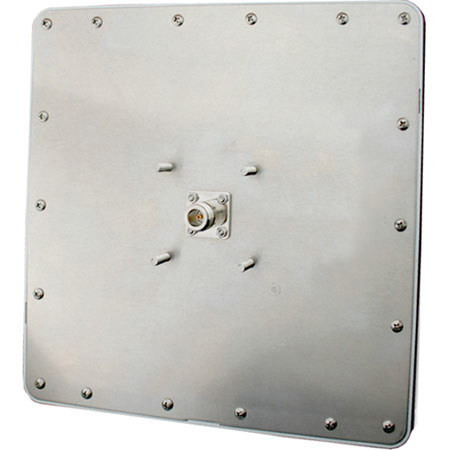

Amped Wireless High Power 14dBi Outdoor Directional WiFi Antenna Kit

SKU: AWAD14EX MFR: AD14EX
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

About this item

The Amped Wireless High Power 14 dBi Directional Outdoor WiFi Antenna Kit increases the signal strength and range of your WiFi device in a single direction. It works on most 2.4GHz 802.11b/g/n devices, such as routers, access points, adapters, cameras and bridges. The high gain antenna provides more powerful, directional, point to point WiFi coverage.

The AD14EX replaces the antenna on your existing WiFi device and concentrates your device's signal into one direction, covering distances of up to 1.5 miles (2.4 km) if you have another high power outdoor antenna on the other end of your connection (second antenna not included). In order to take advantage of this full potential range, the connection must have no obstructions and must have line of sight.

The High Power Outdoor Antenna Kit includes everything you need in order to mount the antenna outdoors on a wall or pole. Also safety-conscious, the AD14EX includes a Premium Surge Protector to protect your wireless devices against electrical surges.

What's Included With This Item

  • Amped Wireless High Power 14 dBi Directional Outdoor WiFi Antenna
  • Mounting Kit for Wall or Pole Mounting
  • Premium Surge Protector
  • 3' N-Plug to RP-SMA Jumper Cable
  • Setup Guide
  • Amped Wireless 1 Year Limited Warranty

Key Features

  • Concentrates the coverage of your wireless signal in one direction for maximum range and performance
  • Works with all 2.4GHz IEEE 802.11b/g/n WiFi devices with detachable antennas and RJ-SMA or N-Type Female Jack connectors
  • Built with rugged, weatherproof and corrosion-resistant components to ensure years of use outdoors
  • Internal components are finely tuned for maximum signal transfer efficiency from your wireless device
  • Back panel features a weather sealed stainless steel plate, rugged mounts for attaching the mounting kit and a nickel plated N-Type Female connector
  • Includes a Premium Lightning Surge Protector to protect your home, office and networking equipment from dangerous lightning and electrical surges
  • The wall / pole mounting kit allows for mounting / installation on multiple surfaces for various applications
  • Includes 3.0' (0.9 m) N-Plug to RP-SMA Jumper Cable for easy connection to standard wireless devices with detachable antennas and SMA antenna connectors
  • Requires Premium 25' (7.6 m) Outdoor WiFi Antenna Cable

Technical Specs

Wireless Standard IEEE 802.11b/g/n
Frequency Range 2.4 - 2.5 GHz
Antenna Gain 14 dBi
Antenna Connector N-Type Female
VSWR 1.8:1 Max
Pattern Antenna: 30 Deg. H Plane and V Plane
Polarization Linear, Vertical
Lighting Protection DC Ground
Survival Wind Speed 135 mph (217.3 km/hr)
Power Handling 50 W
System Requirements 1x 802.11b/g/n Wireless Device with detachable antenna (RJ-SMA or N-Type Female connector) (sold separately)
1x Premium 25' (7.6 m) Outdoor WiFi Antenna Cable (APC25EX)
Operating Temperature 40 - 176 Deg. F (4.4 - 80 Deg. C)
