Broncolor Minicom Basic Monolight Kit
Broncolor

Broncolor Minicom Basic Monolight Kit, with One 600 Ws Minicom 80 Monolight Optimized for 230V or 120V, Umbrella, Light Stand & Travel Bag.

SKU: BCB3149000 MFR: B3149007
What's Included
What's Included With This Item:
  • Broncolor Minicom 80
  • Flash Tube
  • Modelling Lamp
  • Protecting Glass
  • Transparent Transport Protection Cap
  • Mains Cable
  • P-Travel Reflector
  • Umbrella Reflector
  • Umbrella White, Dia. 82cm
  • Synchronous Cable, 5m
  • Travel Bag
  • Stand
  • Broncolor 2 Years Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$2,176.58
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

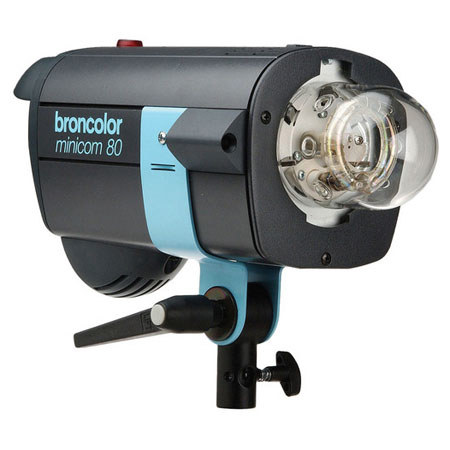

The Broncolor Minicom 80 Monolight is controlled by microprocessor with interlocking Pulso bajonet, which permits a 360° rotation of the mounted light shapers. Features 600 J flash energy (100 V version: 500 J), control range over 5 f-stops in 1/1 or 1/10 f-stop increments, high repetitive accuracy for digital imaging, internal discharge in case of a reduction of power. It has Infrared receiver and photocell (can be switched off separately).

What's Included With This Item

  • Broncolor Minicom 80
  • Flash Tube
  • Modelling Lamp
  • Protecting Glass
  • Transparent Transport Protection Cap
  • Mains Cable
  • P-Travel Reflector
  • Umbrella Reflector
  • Umbrella White, Dia. 82cm
  • Synchronous Cable, 5m
  • Travel Bag
  • Stand
  • Broncolor 2 Years Warranty

Key Features

  • High repetitive precision for digital imaging
  • Large control range of the flash energy
  • Flash release also possible via radio (optional) and infrared
  • Automatic flash release control
  • Illuminated silicone keyboard and LED-display, resistant to dust and scratches
  • Additional flash sequences (flash series)
  • Sensitivity of the photocell can be reduced
  • Automatic adaptation to the respective mains power
  • Modification to RFS version possible

Technical Specs

Flash energy 600 J (100V: 500 J)
F-stop At a distance of 2 m / 6.6 feet 100 ISO, reflector P50 // P70: 45 5/10//32 5/10 (100 V: 45 2/10 // 32 2/10)
Flash duration t 0.1 (t 0.5) 1/420 s (1/1500 s) with mains voltage 110 - 240 V
=> with mains voltage 100 V: about 20 % longer
Charging time For 100 % of selected energy
230 V / 50 Hz: 0,4 - 1,4 s
120 V / 60 Hz: 0,4 - 1,9 s
100 V / 50 Hz: 0,4 - 3,0 s
Can be switched to slow charge mode
Ready display Visual and audible (can be switched off), signals when 100% of selected energy is reached
Controls Illuminated digital display, LED display as well as dust and scratch-proof, illuminated silicone keyboard
Control range of flash energy Over 4 f-stops in 1/10 increments (1:16);
Can be switched to 5 f-stops (1:32)
(100 V: 1/3 f-stop less)
Modelling light Halogen max. 300 W
Additional functions Sequences (serial flashes) up to 50 flashes
Sensibility of the photocell can be reduced
Flash release Manual release button, photocell and infrared receiver (can be switched off), sync cable, FCM 2, FCC, IRX2.
Flash monitoring Visual: Dim or boost function of the modelling light during charging
Audible: buzzer
Number of sync sockets 2
Stabilized flash voltage +/- 1,5 %
Cooling Fan
Power requirements 200-240 V / 50-60 Hz: 6 A
100-120 V / 50-60 Hz: 10 A
Standards EC standard 73/23, UL 122
Compatibility Light shaper: All Broncolor light shapers
Remote release: IRX2, FCM2
Dimensions (L x W X H): Monolight 286 x 154 x 194 mm / 11.2 x 6 x 7.6 inch
Weight: Monolight 3.3 kg / 7.3 kg
