Manfrotto 526 Pro Fluid Video Head: Picture 1 thumbnail Manfrotto 526 Pro Fluid Video Head: Picture 2 thumbnail

35% Off

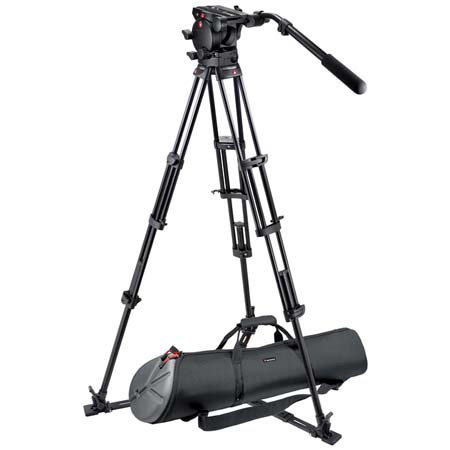

Manfrotto Video Kit with 526 Pro Fluid Video Head, 545GB Pro Video Tripod and MBAG100P Tripod Bag, Maximum Height 68", Supports 35 lbs

SKU: BG526545GBK MFR: 526,545GBK

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

List Price: $2,550.00

Availability: In Stock & Ready to Ship

Free Expedited Shipping

See all shipping options

Manfrotto 526 Pro Fluid Video Head: Picture 1 regular $1,649.00

About Manfrotto 526 Pro Fluid Video Head

The Manfrotto - Manfrotto Video Kit comes with 526 Professional Fluid Video Head which features a replaceable and removable pan arm rosette so if any damage occurs to the side castings, only a small part needs to be replaced; large rubber padded knobs for better grip and all the controls (tilt and pan lock, tilt drag) are located on the left side so they can be easily found.

The 526 offers the most precise fluid drag system comprised of three step settings for low, medium and high drag levels (numbered 1, 2 and 3), plus the additional no-drag setting (number 0) for such occasions as snap-pans/tilts. Counterbalance is achieved through an adjustable spring for camera weights between 17.5 and 33 lbs. The built-in 4-inch half-ball adapts to a number of the tripods with a 4-inch receiver, allowing the quick leveling of the camera with the aid of the bright leveling bubble. The 526 comes with one pan arm and the long 357PLV plate.

The Manfrotto 545GB is a two stage, twin leg, lightweight aluminum professional video tripod. Due to optimization of the upper and lower collars, the tripod guarantees more torsion rigidity and payload (55 lbs.), plus improved shooting performance. The collars have also been redesigned to be aligned with the single tube tripods. The die cast aluminum crown features a built-in 100mm interface bowl, which can be adapted to a 75mm if needed. The tripod is equipped with floor-level spreader. It comes with quick on-off rubber shoes for better grip on smooth floors. The bag's asymmetric tapered shape allows you to store the tripod with the head attached. Zip extends down the length of the bag, but also fully opens the top end of the bag. The thermoform padding holds the tripod in place in the bag and protects it, especially the head, during transport.

Manfrotto 526 Pro Fluid Video Head Features

  • Built-in 10mm interface bowl, can be adapted to a 75mm if needed
  • Rubber shoes guarantee a better grip on smooth floors
  • New designed collars, integrated in the overall product ergonomics for improved rigidity
  • Mid-level spreader for improved tripod stability
  • Bag: Inner pocket holds accessories (such as video head pan bars)
  • Bag: Innovative design and style; ballistic nylon, zips and other materials used are of top quality

Manfrotto 526 Pro Fluid Video Head Specifications

Attachment (Head)
1/4" and 3/8" screws attachment type
Attachment Head (bottom)
3/8'' screw attachment type
Balance control (Head)
One fix spring adjustable from 8 to 15kg
Bubble spirit level (no.) (Head)
1 number
Color (Head)
Counterbalance (Head)
Front tilt (Head)
-70° / +75° tilt range
Head bowl (Head)
Independent pan lock (Head)
Independent tilt lock (Head)
Load capacity (Head)
35.27 lbs
Material (Head)
Maximum working temperature (Head)
Minimum working temperature (Head)
Pan bar - positions (Head)
2 number
Pan bars included (no.) (Head)
1 number
Pan drag (Head)
0 plus 3 step
Panoramic rotation (Head)
Plate type (Head)
Quick release (Head)
Secondary safety system (Head)
Sliding travel of plate (Head)
3.15 in
Tilt drag (Head)
0 plus 3 step
Variable balance control (Head)
Head bowl (Tripod)
Leg sections (Tripod)
3 number
Load capacity (Tripod)
55.11 lbs
Material (Tripod)
Maximum height (Tripod)
62.40 in
Minimum height (Tripod)
12.80 in
Number of stage (Tripod)
Suggested dolly (Tripod)
114MV - 181B
Base diameter (Bag)
7.87 in
Color (Bag)
Diameter (Bag)
9.06 in
Length (Bag)
39.37 in
Material (Bag)
Ballistic nylon
Weight (Bag)
3.09 lbs
Weight (Tripod)
7.72 lbs
Weight (Head)
7.94 lbs
Working height (Head)
5.91 in
Maximum height (Kit)
68.11 in
Minimum height (Kit)
18.70 in
Weight (Kit)
15.65 lbs
Manfrotto 2 years warranty + 3 additional years after registering online or by sending registration card
