Bron Kobold

Bron Kobold DW 200 PAR AC Flight Kit, with 200 watt HMI Head, Ballast, Lamp, PAR Reflector & Scrims (Case not Included)

SKU: BKK332U094 MFR: K332U094
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$4,958.00 List Price

Our Price

$4,634.95
Free Shipping
Qty:

Add to Wishlist

Protect your investment

About the Bron Kobold DW 200 PAR AC Flight Kit

This Kobold DW200 PAR HMI Kit is based on the extremely compact Kobold DW200 focusable 200 Watt Daylight Focus Flood light. The optimized design of the reflector achieves a high light output and a homogeneous illumination. The ergonomically positioned focusing knob enables focusing of 14-51°. This daylight fixture has a solid design, compact dimensions and maximum reliability for all applications in the studio and on location. When the Kobold EWB-200 AC Ballast is connected to a 90-265VAC source, this weather-resistant ballast will provide dimmable power to your fixture via its included head-to-ballast cable.

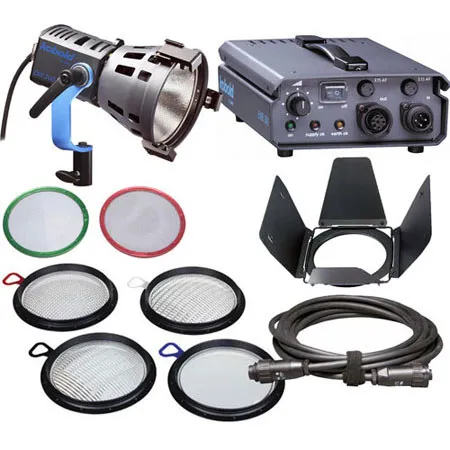

Bron Kobold DW 200 PAR AC Flight Kit Includes

  • Bron Kobold DW200 HMI Lamphead 200 Watts
  • PAR Reflector
  • EWB 200 AC Ballast
  • Four Lens Set for PAR
  • Four Leaf Barndoor Set
  • Scrim Full Single 5"
  • Scrim Full Double 5"
  • HMI Lamp 200 Watts/70 Volts
  • Storage Bag for Five Lenses
  • Bron Kobold Warranty

Bron Kobold DW 200 PAR AC Flight Kit Features

  • Focus: Use the rotary knob on the rear of the fixture to adjust focus; note the corresponding "flood" and "spot" symbols on the fixture label indicating the adjustment directions.
  • Installation is quick and without any tools, due to a locking mechanism. The optimized design of this reflector achieves a high light output and a homogeneous illumination.
  • Light output: Spot: 44940 lux / 4175 fc @ 9.8' (3 m) with no lens
  • Barndoor Set: To place the barn door on the fixture, slip it onto the impressed section of the ring and secure it with the knurled screw located opposite the recess. Pull the knurled screw and let it spring back into place; then tighten it to secure the barn door.
  • Hot Restrike: Socket and switches are equipped to allow switching the fixture on and off repeatedly without the delay of waiting for the bulb to cool.
  • The required light output can be set (100 - 60% adjustment range) with the power regulator.
  • Color temperature can change with the power output depending on the type of lamp used.
  • To connect the ballast unit to the fixture just plug in the corresponding connection.
  • To disconnect, press the security mechanism on the socket before pulling out the plug.
  • Green LED is lit continuously: normal operating mode
  • Green LED is flashing: the thermo protection is activated reducing the power continuously down to 60%
  • Red LED Blinking: the mains voltage has dropped below 85 V. If this LED is flashing, the lamp will be switched off automatically.
  • Yellow LED has not lit up: the ballast is not grounded, or connected correctly
  • IP 43, I, with strengthened insulation for additional protection; can take splashed water at a 60° angle from vertical
  • 2- 3.15A Fuses
  • Ignition overload protection
  • Temperature monitor
  • Convection cooling
  • Meets CE Standards
  • Lens Set: Each lens has a color-coded handle for easy identification.
  • Four leaf barndoor set helps shape the light
  • Full and double scrim help control the intensity

Bron Kobold DW 200 PAR AC Flight Kit Specifications

Light Fixture: Rating 200 watts
Light Fixture: Socket (Lampholder) GZY 9.5 for 200W SE HR lamp
Light Fixture: Lens (Condenser) 4 Lens Set with Bag: Narrow, Medium Spots, Wide, Very Wide Floods
Light Fixture: Mounting Baby (5/8")
HMI Ballast: Rating 200 watts, 90-265VAC
HMI Ballast: Cable 13' (4m) with fixture
HMI Ballast: Dimensions 9.25 x 6.3 x 3.3"
23.5 x 16 x 8.5cm
HMI Ballast: Weight 3.74 lbs
1.7kg
Light Fixture: Dimensions 6.75 x 5.85 x 4.3"
17.1 x 14.9 x 11cm
Light Fixture: Weight 2.6 lbs
1.2kg
Kit Weight 10.25 lbs
4.7kg
