Bron Kobold

Bron Kobold DW 400 PAR 458 AC Kit, with 400 watt HMI Head, Ballast, Lamp, PAR Reflector, Barndoors & Scrims.(Case not Included)

SKU: BKK332U170 MFR: K332U170
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$6,766.00 List Price

Our Price

$6,325.95
Free Shipping
Qty:

Add to Wishlist

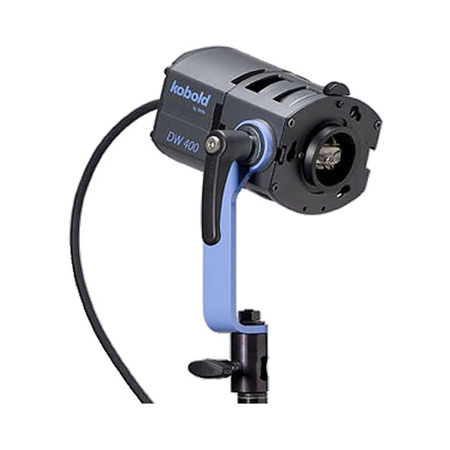

Bron Kobold DW 400 PAR 458 AC Kit: Picture 1 regular

About the Bron Kobold DW 400 PAR 458 AC Kit

The Kobold DW 400 PAR 400 Watt HMI Kit 458 (w/o case or lamp) is built around the IP54 rated, weather-proof DW 400 lamp base which can withstand water splashing on the housing without harmful effect. The optimized design of the reflector achieves a high light output and a homogeneous illumination. The ergonomically positioned focusing knob enables focusing of 15-45°.

This daylight fixture has a solid design, compact dimensions and maximum reliability for all applications in the studio and on location. When the Kobold AC EWB 400.575.800 Ballast is connected to a 90-265VAC source, this weather-resistant unit will provide dimmable power to your fixture via its included head-to-ballast cable. The kit includes a PAR reflector, 4-lens set, scrims, 4-leaf barn door and a 400 Watt HMI hr lamp.

Bron Kobold DW 400 PAR 458 AC Kit Includes

  • Bron Kobold DW400 400 Watt HMI Lamp Head with Stand Mount
  • PAR Reflector for the DW400
  • EWB-400.575.800 AC Ballast for DW400, DW575, DW800 (85-265VAC)
  • 4-Leaf Barndoor for DWP400 Par/Open Face (Black)
  • Lens Bag for DW400 HMI PAR
  • 713-0740 PAR Lens Set Scrim, Full Single for DW400
  • 6-5/8"
  • HMI Lamp for DW400
  • 400 Watts/70 Volts
  • Bron Kobold Warranty

Bron Kobold DW 400 PAR 458 AC Kit Features

  • Focus: Use the rotary knob on the rear of the fixture to adjust focus; note the corresponding "flood" and "spot" symbols on the fixture label indicating the adjustment directions.
  • Reflector: Installation is quick and without any tools, due to a locking mechanism. The optimized design of this reflector achieves a high light output and a homogeneous illumination.
  • Barn Door Set: To place the barn door on the fixture, slip it onto the impressed section of the ring and secure it with the knurled screw located opposite the recess. Pull the knurled screw and let it spring back into place; then tighten it to secure the barn door.
  • Hot Restrike: Socket and switches are equipped to allow switching the fixture on and off repeatedly without the delay of waiting for the bulb to cool.
  • Dimmable: The required light output can be set (100 - 60% adjustment range) with the power regulator. Color temperature can change with the power output depending on the type of lamp used.
  • Easy Connection: To connect the ballast unit to the fixture just plug in the corresponding connection. To disconnect, press the security mechanism on the socket before pulling out the plug.
  • LED Display: Red and Green LEDs continuously monitor operation, indicate voltage changes and employ thermo protection, power reduction and even shut-down if necessary.
  • Safety: Water-resistant IP 54 rated ballast with strengthened insulation for additional protection, Ignition overload protection, Temperature monitor, Convection cooling, Meets CE Standards

Bron Kobold DW 400 PAR 458 AC Kit Specifications

Light Fixture Rating 400 watts
Socket (Lampholder) GZY 9.5 for 400W SE hr Lamp
Lens (Condenser) 4 Lens Set with Bag: Narrow, Medium Spots, Wide, Very Wide Floods
Mounting Baby (5/8")
HMI Ballast Rating AC: 400/575/800, 90-265VAC
Cable 13' (4m) with fixture
HMI Ballast Dimensions 9.25 x 6.3 x 3.3" (23.5 x 16 x 8.5cm)
HMI Ballast Weight AC: 3.74 lbs (1.7kg)
Light Fixture Dimensions 6.6 x 5.6 x 5.4" (16.8 x 14.2 x 14cm)
Light Fixture Weight 3 lbs (1.3kg)
Light Fixture Dimensions 6.6 x 5.6 x 5.4" (16.8 x 14.2 x 14cm)
Kit Weight 17.3 lbs (7.8 kg)
