Bron Kobold

Bron Kobold DW 800 PAR AC Production Kit, with 800 watt HMI Head, Ballast, PAR Reflector, Lamp, Scrims, Barndoor & Case

SKU: BKK332U190 MFR: K332U190
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Free Expedited Shipping
Add to Wishlist

About this item

This is a Kobold 800 Watt HMI PAR Production Kit. The optimized design of the reflector achieves a high light output and a homogeneous illumination. The ergonomically positioned focusing knob enables focusing of 12-70°. This daylight fixture has a solid design, compact dimensions and maximum reliability for all applications in the studio and on location. The weather-impervious DW800 has an IP54 rating, meaning it is highly resistant to water splashed on the housing.

The Kobold EWB-400.575.800 IP43 rated, weather-resistant AC Ballast is for the DW400, DW575 or DW800 HMI fixture. When connected to an 85-265VAC source, this ballast will provide dimmable power to your fixture via its included head-to-ballast cable. The kit also includes a PAR reflector, 4-lens set, 4-leaf barn door, 2-25' lamp cables, scrims, 800 Watt HMI lamp and a production case .

What's Included With This Item

  • Bron Kobold DW800 HMI Lamphead
  • 800 Watts
  • PAR Reflector for DW800
  • Four Leaf Barndoor Set for DW800
  • EWB-400.575.800 AC Ballast for DW400, DW575, DW800 (85-265VAC)
  • Four Lens Set for DW800 HMI PAR
  • Nylon Lens Bag for DW800 Airline Case
  • 2 x Lamphead Cable for DW400 HMI Fixtures
  • 16.5' (5m)
  • Scrim, Full Single for DW800
  • 9"
  • 2 x Scrim, Full Double for DW800
  • 9"
  • HMI Lamp for DW800
  • 800 Watts/100 Volts

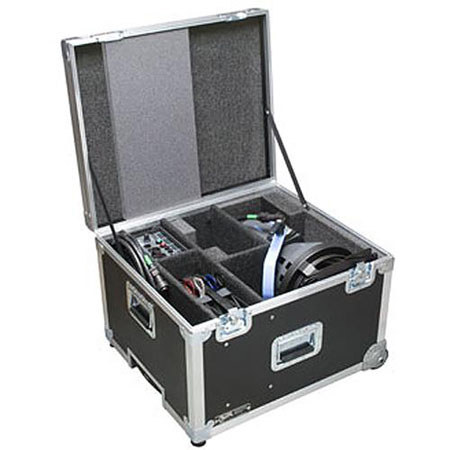

  • Production Case
  • Bron Kobold Warranty

Key Features

  • Fine Design: Lightweight and compact. No stray light, heat-resistant. Optional ceramic safety glass, wide range of accessories
  • Rugged: Housing is made of high strength aluminum and is equipped with a mount for single-ended HMI/MSR lamps with a high degree of efficiency. The ignition unit is air-tight and allows cold and hot starts even in a humid environment.
  • Versatile: May also be used as a PAR, or lantern fixture, with the appropriate reflectors, available separately.
  • Dimmable: The required light output can be set (100 - 60% adjustment range) with the power regulator. Color temperature can change with the power output depending on the type of lamp used. Less than 5% flicker
  • LED Display: Green LED is lit continuously: normal operating mode. Green LED is flashing: the thermo protection is activated reducing the power continuously down to 60%. Red LED Blinking: the mains voltage has dropped below 85V. If this LED is flashing, the lamp will be switched off automatically.
  • Hot Restrike: Permits rapid on-off switching of included HMI bulb
  • Barn Doors: Help to shape the light output
  • 4-Lens Set: Super Spot: 75,993 Lux, 7060 fc, Medium Spot: 28,395 Lux, 2638 fc, Medium Flood: 6,749 Lux,627 fc, Super Wide Flood: 2583 Lux, 240 fc

Technical Specs

Light Fixture Rating 800 watts
Socket (Lampholder) G22, hot restrike
Lens (Condenser) Super Spot: 75,993 Lux, 7060 fc
Medium Spot: 28,395 Lux, 2638 fc
Medium Flood: 6,749 Lux, 627 fc
Super Wide Flood: 2583 Lux, 240 fc
Mounting 28mm (1-1/8") spigot with 16mm (5/8") hole
HMI Ballast Rating 400/575/800 watts
Cable Included
HMI Ballast Dimensions 10.5 x 7.2 x 4.4" (26.7 x 18.3 x 11.2cm)
HMI Ballast Weight 5.7 lbs (2.6kg)
Light Fixture Dimensions 9 x 12 x 16" (22.6 x 30 x 41.5cm)
Light Fixture Weight 4.5 lbs (3.9kg)
Kit Weight 81 lbs (36.7 kg)
