Bron Kobold

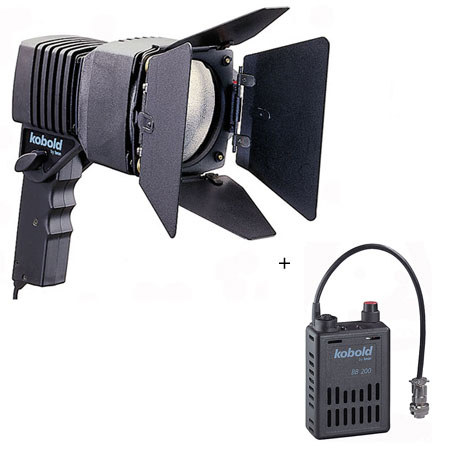

Bron Kobold DLF 200 DC Reporter Kit, with 200 watt HMI Sun Gun, Ballast, Lamp, & Barndoors.

SKU: BKK342U005 MFR: K342U005
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$3,309.00 List Price

Our Price

$3,101.33
Free Shipping
Qty:

Add to Wishlist

Protect your investment

About this item

This is a Kobold DLF200 DC HMI Sun Gun Kit, which is based on the 200 watt Reporter HMI Sun Gun. It is one of the smallest and lightest 200 watt HMIs on the market. This small 200 watt fixture works well as a key and is perfect as a fill or back light.

The 200 Reporter has a spot to flood range of 16 to 43°. At full spot, it will throw a beam of 644 fc, 16' (5 m) in diameter from a distance of 10' (3 m). At full flood, it will provide a 149 fc beam 43' (13 m) in diameter from the same distance.

The DC ballast in this kit will work with your choice of 2-Pin 26-34V DC source, available separately. Included in this kit is a four leaf barndoor set to help shape the light. To complete this kit, order a light stand, case and hot-restrike HMI bulb, all available separately.

What's Included With This Item

  • Bron Kobold DLF200 Reporter 200 Watt HMI Sun Gun
  • BB200/C Battery Ballast for DW200 (26-34VDC)
  • Four Leaf Barndoor Set for DLF200
  • Bron Kobold Warranty

Key Features

  • DLf200 Fixture features:
  • Focus: Use the rotary knob on the rear of the fixture to adjust focus; note the corresponding "flood" and "spot" symbols on the fixture label indicating the adjustment directions.
  • Barndoor Set: To place the barn door on the fixture, slip it onto the impressed section of the ring and secure it with the knurled screw located opposite the recess. Pull the knurled screw and let it spring back into place; then tighten it to secure the barn door.
  • Hot Restrike: Socket and switches are equipped to allow switching the fixture on and off repeatedly without the delay of waiting for the bulb to cool.
  • DC Ballast features:
  • The required light output can be set (100 - 60% adjustment range) with the power regulator.
  • Color temperature can change with the power output depending on the type of lamp used.
  • Two-Pin connector
  • To connect the ballast unit to the fixture just plug in the corresponding connection.
  • To disconnect, press the security mechanism on the socket before pulling out the plug.
  • Green LED is lit continuously: normal operating mode
  • Green LED is flashing: the thermo protection is activated reducing the power continuously down to 60%
  • Red LED Blinking: the mains voltage has dropped below 85 V. If this LED is flashing, the lamp will be switched off automatically.
  • Yellow LED has not lit up: the ballast is not grounded, or connected correctly
  • IP 43, I, with strengthened insulation for additional protection; can take splashed water at a 60° angle from vertical
  • 2- 3.15A Fuses
  • Ignition overload protection
  • Temperature monitor
  • Convection cooling
  • Meets CE Standards

Technical Specs

Light Fixture: Rating 200 watts
Light Fixture: Socket (Lampholder) GZY 9.5 for 200W SE HR lamp
Light Fixture: Lens (Condenser) None
Light Fixture: Mounting Baby (5/8")
HMI Ballast: Rating Voltage range 30V battery: 26 - 34VDC
Voltage range 24V battery: 22 - 25VDC (output limited to 170W)
HMI Ballast: Cable 13' (4m) with fixture
HMI Ballast: Dimensions 2.6 x 4.1 x 6.5"
6.5 x 10.5 x 16.5cm
HMI Ballast: Weight 1.6 lbs
750 g
Light Fixture: Dimensions 6.75 x 5.85 x 4.3"
17.1 x 14.9 x 11cm
Light Fixture: Weight 2.6 lbs
1.2kg
Kit Weight 8 lbs
3.6kg
