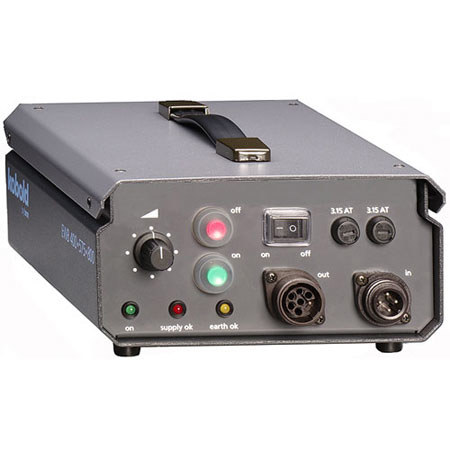

The Kobold EWB-400.575.800 AC Ballast is for the DW400, DW575 or DW800 HMI fixture. When connected to a 85-265VAC source, this ballast will provide dimmable power to your fixture via its included head-to-ballast cable.
Bron Kobold EWB-400.575.800 Features
The required light output can be set (100 - 60% adjustment range) with the power regulator.
Color temperature can change with the power output depending on the type of lamp used.
Less than 5% flicker
Easy to connect the ballast unit to the fixture just plug in the corresponding connection.
Easy to disconnect, press the security mechanism on the socket, before pulling out the plug.
Green LED is lit continuously: normal operating mode
Green LED is flashing: the thermo protection is activated reducing the power continuously down to 60%
Red LED Blinking: the mains voltage has dropped below 85 V. If this LED is flashing, the lamp will be switched off automatically.
Yellow LED has not lit up: the ballast is not grounded, or connected correctly
IP43, I, with strengthened insulation for additional protection
