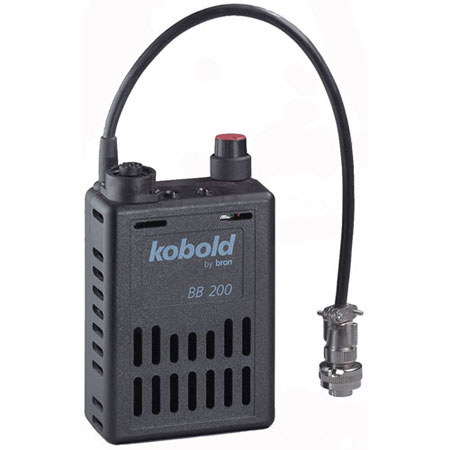

Bron Kobold BB200/C HMI Battery Ballast Unit, Dimmable with 2-Pin Connector

Bron Kobold
SKU: BKK7420193 MFR: K7420193

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Bron Kobold BB200/C

The Kobold BB200/C DC Ballast is for the DW200 HMI fixture. When connected to your 26-34 Volt Battery source, it will provide dimmable power to your fixture in areas where AC current is not available.

Bron Kobold BB200/C Features

  • The required light output can be set (100 - 60% adjustment range) with the power regulator.
  • Color temperature can change with the power output depending on the type of lamp used.
  • Two-Pin connection to connect or disconnect the ballast unit from your battery, tighten or release the cap nut on the plug.
  • Green LED is lit continuously: normal operating mode
  • Green LED is flashing: the battery voltage has dropped to 26V - 22V.
  • Red LED is blinking: the battery voltage has dropped to 22V - 19V
  • Red LED is lit continuously: the unit has stopped operating
  • IP 20, insulation class II
  • 10A Fuse
  • Ignition overload protection
  • Temperature monitor

Bron Kobold BB200/C Specifications

Lamp Power
200 watts
Input Voltage
Voltage range 30V battery: 26 - 34VDC
Voltage range 24V battery: 22 - 25VDC (output limited to 170W)
100 - 60%
Power consumption
215 VA
Protection class
IP 20
Dimension (L x W x H)
65 x 105 x 165 mm
Weight (Without battery)
0.8 kg
Mfr #
