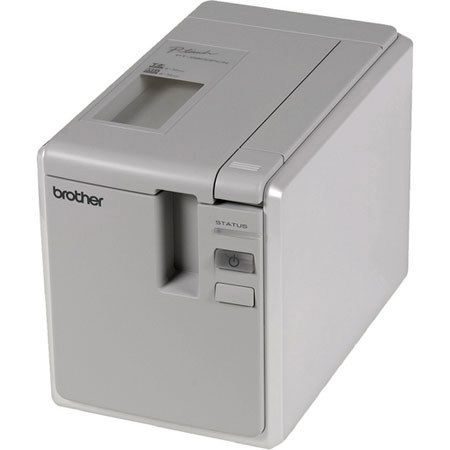

Brother PT-9700PC Desktop Thermal Barcode Label Printer, 8m (26.25') Tape Length, 360x720dpi Print Resolution

SKU: BRPT9700PC

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Brother PT-9700PC Specifications

  • Tape Sizes

    3.5mm, 6mm, 9mm, 12mm, 18mm, 24mm, 36mm

  • Maximum Print Resolution

    360 x 720 dpi (14 x 28 dots/mm)

  • AC Adapter

    AD-9100ES (Included)

  • Tape Technology

    Laminated Thermal Transfer

  • Cutter

    Automatic (Built-In) Cutter: Full-Cut mode and Crack and Peel mode

  • Handle

    No

  • Batteries

    No

  • Keyboard

    No

  • Interface

    USB (1.1 or 2.0), Serial (RS-232C)

  • Tape Length

    8m (26.25')

  • LCD Display

    No

  • Tape Material

    Polyester (PET)

  • Maximum Print Speed

    HGe/HG Tape: Up to 3.15 ips (80 mm/sec) TZe Tape: Up to 0.78 ips (20 mm/sec)

  • Auto Incrementation

    Alpha Numeric

  • Label Length Setting

    0.17" - 39.37" (4.32mm - 999.99mm)

  • Multi-copy Print

    Up to 5,000 Copies

  • Mac Connectivity

    USB (1.1 or 2.0)

  • Mac Available hard disk space

    50 MB

  • Rotate Printing

    Yes

  • Barcoding

    Yes

  • Operating System

    Windows 7/XP/2000 Professional, Windows Vista
    Mac OS 10.3.9 - 10.7.x

  • Text Insert

    Yes

  • Barcodes (Stand-alone mode)

    Linear: Code39, ITF (I-2/5), EAN8, EAN13, UPC-A, UPC-E, Codabar (NW-7), Code128, GS1-128 (UCC/EAN-128), GS1 DataBar (RSS)
    2-Dimensional: QR Code, PDF417, MicroPDF417, Data Matrix, Maxicode

  • Download data to unit

    Yes

  • Vertical Printing

    Yes

  • PC Available hard disk space

    Yes

  • Horizontal Alignment

    Yes

  • Database Printing

    Yes

  • Barcodes (connected to computer)

    Linear: Code39, ITF (I-2/5), UPC-A, UPC-E, EAN8, EAN13, Codabar (NW-7), Code128, UCC/EAN128, Postnet, Laser Bar Code, ISBN-2, ISBN-5, GS1 DataBar (RSS)
    2-Dimensional: PDF417, QR Code, Micro QR Code, Data Matrix, Maxicode

  • Memory

    2 MB

  • PC Minimum RAM memory

    512 MB

  • Snapper function

    Yes

  • Text Framing/Fill Pattern

    Yes

  • Date/Time Stamp

    Yes

  • Mac Minimum RAM memory

    128 MB

  • Mac Operating System

    Mac OS 10.3.9-10.7.x

  • Mirror Printing

    Yes

  • Built-in Designs/Templates

    Downloadable

  • PC Connectivity

    USB (1.1 or 2.0), Serial (RS-232C)

  • Max. Print Height

    1.07" (27.1 mm)

  • Multi-Block

    Yes

  • Auto Formats

    Yes

  • Dimensions

    Housing: 4.6 x 7.6 x 5.5" (11.68 x 19.30 x 13.97cm)

  • Weight

    Housing: 3.5 lbs (1.58 kg)

  • UPC Code

    012502623458

About Brother PT-9700PC

The Brother PT-9700PC Desktop Thermal Barcode Label Printer prints truly laminated labels on demand and is designed for applications that require a more permanent label. Although conventional thermal transfer printed labels are durable, fade resistant and may be used in extreme temperatures, a laminated label offers additional protection against abrasion, chemicals and moisture. Printed at 360 dpi resolution, these high quality laminated labels have a glossy clear finish that makes them ideal for serial number labels in manufacturing, parts and product identification labels in warehouse, calibration and asset management stickers in quality management, speciman identification in clinical labs and for markings in harsh environment applications.

With an attractive industrial design and small footprint, the fast 3.1 ips print speed makes this desktop thermal barcode label printer suitable for use in line for manufacturing applications. A built-in automatic cutter reliably trims the continuous label to your desirable length, one at a time or configure it to half-cut multiple labels into a strip for easy label removal.

Unlike other thermal transfer label printers, changing consumables is simple and virtually trouble-free because the PT-9700PC uses HG and TZ tapes, true drop- in cartridges that contain all the consumables: ink ribbon, adhesive back media and lamination preloaded and ready to go - no adjustments are necessary.

Although designed to be a GDI printer, fully compatible with Windows 7 and other Windows OS computers, the PT-9700PC can also be used with other operating systems and standalone devices like a barcode scanner, keyboard, medical or test equipment.

With this combination of high performance, versatility and reliability, why not experience this for yourself and see why the PT-9700PC is the best value desktop bar code and label printer for professional quality and harsh environment applications.

Brother PT-9700PC Features

  • Complete barcode software and laminated label printing solution
  • Prints high quality, extremely durable laminated thermal transfer labels
  • Compatible with Windows OS computers, including Windows 7
  • Drop in tape cartridge design helps make media replacement simple and trouble free
  • Prints high quality 360 dpi text, graphics and barcodes
  • Fast, host based printing - up to 3.1 ips
  • Reliable built-in automatic cutter
  • USB 2.0 and RS-232C serial interface connectivity
  • Attractive, small footprint printer design

Key Features

  • Complete barcode software and laminated label printing solution
  • Prints high quality, extremely durable laminated thermal transfer labels
  • Prints high quality 360 dpi text, graphics and barcodes
  • Fast, host based printing - up to 3.1 ips
  • Reliable built-in automatic cutter
  • USB 2.0 and RS-232C serial interface connectivity

What's in the box:

  • Brother PT-9700PC Desktop Thermal Barcode Label Printer
  • 0.94" (24mm) x 26.2' (8m) Black on White Laminated "HG" Tape- USB Interface Cable
  • P-Touch Editor Software and Printer Drivers
  • AC Adapter
  • User Guide
  • Brother 2 Years Limited Warranty
