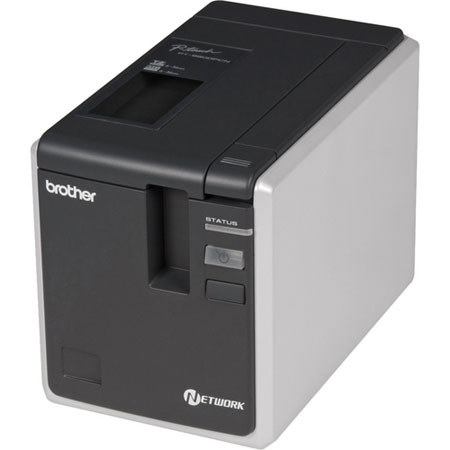

Brother PT-9800PCN Desktop Network Thermal Label and Barcode Printer

SKU: BRPT9800PCN

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Brother PT-9800PCN Specifications

  • Model Type

    Industrial Desktop Network Label Printer

  • Tape Family

    HGe, HG, TZe, TZ

  • Tape Sizes

    3.5mm, 6mm, 9mm, 12mm, 18mm, 24mm, 36mm

  • Tape Length

    8m (26.25')

  • Tape Technology

    Laminated Thermal Transfer

  • Tape Types

    High Grade, Standard Adhesive, Extra-Strength Adhesive, Flexible ID, Tamper-Evident, Non-Laminated, Iron-On Fabric, Acid Free, Stencil

  • Maximum Print Resolution

    360 x 720 dpi (14 x 28 dots/mm)

  • Maximum Print Speed

    HGe/HG Tape: Up to 3.15 ips (80 mm/sec) TZe Tape: Up to 0.78 ips (20 mm/sec)

  • Cutter

    Automatic (Built-In) Cutter: Full-Cut mode and Crack and Peel mode

  • Operation Mode

    PC Connected (GDI Printer, Template), Connected to Host Peripheral (USB, Host USB & Serial Interfaces)

  • Printer Emulation

    Raster, ESC P, Template

  • Control Panel

    On/Off, Feed/Cut

  • Power Switch

    Mechanical

  • Power Supply

    120VAC 60 Hz

  • AC Adapter

    AD-9100ES (Included)

  • Interface

    Ethernet (10/100 Base-TX), USB (1.1 or 2.0), Host USB, Serial (RS-232C)

  • Microsoft Word/Outlook/Excel Add-ins

    Office 2000/2003/2007

  • Max. Print Height

    1.07" (27.1 mm)

  • Multi-Block

    Yes

  • Label Length Setting

    0.17" - 39.37" (4.32mm - 999.99mm)

  • Auto Incrementation

    Alpha Numeric

  • Horizontal Alignment

    Left, Center, Right Justification

  • Vertical Printing

    Yes

  • Mirror Printing

    Yes

  • Rotate Printing

    Yes

  • Text Insert

    Yes

  • Text Framing/Fill Pattern

    Yes

  • Multi-copy Print

    Up to 5,000 Copies

  • Memory

    7 MB

  • Memory for Transferred Data (Number)

    Up to 99 Template Files

  • Date/Time Stamp

    Yes

  • Snapper function

    Yes

  • Download data to unit

    Yes

  • Built-in Designs/Templates

    Downloadable

  • Auto Formats

    Yes

  • Database Printing

    Yes

  • Database File Compatibility

    .csv, .txt, .mdb, .xls and Microsoft SQL Server

  • Internal Fonts

    ESC P: Helsinki, Letter Gothic Template (Bitmap & Outline): Helsinki, Brussels, Letter Gothic

  • Internal Font Sizes

    ESC P: 21, 28, 44, 56, 88, 120 dots Template (Bitmap): 21, 28 dots Template (Outline): 35 - 380 dots (20 sizes)

  • Internal Font Styles

    ESC P: Bold, Italic, Underline Template: Bold, Italic, Vertical, Outline, Shadow, Outline/Shadow

  • Barcoding

    Yes

  • Barcodes (Stand-alone mode)

    Linear: Code39, ITF (I-2/5), EAN8, EAN13, UPC-A, UPC-E, Codabar (NW-7), Code128, GS1-128 (UCC/EAN-128), GS1 DataBar (RSS)
    2-Dimensional: QR Code, PDF417, MicroPDF417, Data Matrix, Maxicode

  • Barcodes (connected to computer)

    Linear: Code39, ITF (I-2/5), UPC-A, UPC-E, EAN8, EAN13, Codabar (NW-7), Code128, UCC/EAN128, Postnet, Laser Bar Code, ISBN-2, ISBN-5, GS1 DataBar (RSS)
    2-Dimensional: PDF417, QR Code, Micro QR Code, Data Matrix, Maxicode

  • (PC) Connectivity

    Ethernet (10/100 Base-TX), USB (1.1 or 2.0), Serial (RS-232C)

  • (Mac) Connectivity

    USB (1.1 or 2.0), Ethernet (10/100 Base -TX)

  • Operating System

    Windows Server 2008/2003, Windows 7/XP/2000 Professional, Windows Vista
    Mac OS 10.3.9-10.7.x

  • (PC) Available hard disk space

    50 MB

  • (Mac) Available hard disk space

    50 MB

  • (PC) Minimum RAM memory

    512 MB

  • (Mac) Minimum RAM memory

    128 MB

  • Dimensions

    4.6 x 7.6 x 5.5" / 11.6 x 19.30 x 13.97 cm

  • Weight

    3.5 lbs (1.58 kg)

  • UPC Code

    012502623465

About Brother PT-9800PCN

Designed for applications that require a more permanent label, the Brother PT-9800PCN Desktop Network Thermal Label and Barcode Printer prints truly laminated labels on demand. Although conventional thermal transfer printed labels are fade resistant, durable and may be used in extreme temperatures, a laminated label offers additional protection against chemicals, moisture and abrasion. These high quality laminated labels are printed at 360 dpi resolution and have a glossy clear finish that makes them ideal for serial number labels in manufacturing, calibration and asset management stickers in quality management, parts and product identification labels in warehouse, specimen identification in clinical labs and for markings in harsh environment applications.

With a small footprint and attractive industrial design and small footprint, the fast 3.1 ips print speed makes this laminated network thermal label printer suitable for use in line for manufacturing applications. A built-in automatic cutter reliably trims the continuous label to your desirable length, one at a time or configure it to half-cut multiple labels onto a strip for easy label removal.

Unlike other thermal transfer label printers, changing consumables is simple and virtually trouble-free because the PT-9800PCN uses TZ and HG tapes, true drop-in cartridges that contain all the consumables: ink ribbon, adhesive back media and lamination preloaded and ready to go - no adjustments are necessary.

Although designed to be a GDI network printer, fully compatible with Windows 7 and other Windows OS computers, the PT-9800PCN network thermal barcode label printer can also be used with other operating systems and standalone devices like a bar code scanner, keyboard, medical or test equipment. With this combination of high performance, versatility and reliability, why not experience this for yourself and see why the PT-9800PCN is the best value desktop bar code and label printer for professional quality and harsh environment applications.

Brother PT-9800PCN Features

  • Complete barcode software and network label printing solution
  • Prints high quality, extremely durable laminated thermal transfer labels
  • Compatible with Windows OS computers, including Windows 7
  • Drop in tape cartridge design helps make media replacement simple and trouble free
  • Includes PT-Editor 5 professional barcode and label design/print software application
  • Download templates and print from a barcode scanner, keyboard, or other standalone device
  • Prints high quality 360 dpi text, graphics and barcodes
  • Fast, host based printing - up to 3.1 ips
  • Reliable built-in automatic cutter
  • 10/100 Base TX Ethernet, USB 2.0 (host and peripheral) and RS-232C serial interface connectivity

Key Features

  • Complete barcode software and network label printing solution
  • Prints high quality, extremely durable laminated thermal transfer labels
  • Prints high quality 360 dpi text, graphics and barcodes
  • Fast, host based printing - up to 3.1 ips
  • Reliable built-in automatic cutter

What's in the box:

  • Brother PT-9800PCN Desktop Network Thermal Label and Barcode Printer
  • 0.94" x 26.2' Black On White Laminated "HG" Tape
  • USB Interface Cable
  • P-Touch Editor Software and Printer Drivers
  • AC Adapter
  • User Guide
  • Brother 2 Years Warranty
