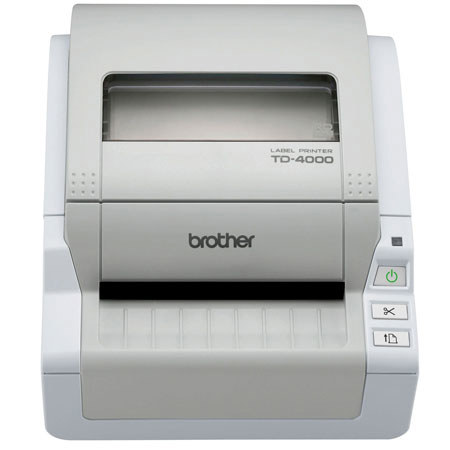

Brother TD-4000 Desktop Label and Barcode Printer, 109mm/sec Printing Speed, 300x300dpi Print Resolution, 1" Print Length, 4" Roll Size

SKU: BRTD4000

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2017-04-06T08:34:36

Rated 5 out of 5

brother td400

love it! works great

Wanda H.

2015-10-03T20:00:00

Rated 5 out of 5

Works very well like all my other brother products

4444

2014-03-13T20:00:00

Rated 5 out of 5

Perfect Fit

MY small business has a retail store so I was looking for a good multi-purpose label printer that had barcode label printing capabilities. The TD-4000 is by far the best fit for my needs today and the free software updates are terrific!

bohemiaken

Brother TD-4000 Specifications

  • Maximum Media Width

    4.13" (105 mm)

  • Maximum Printing Speed

    4.29 ips (109 mm/sec)

  • Maximum Print Resolution

    300 x 300 dpi (12 x 12 dots/mm)

  • Printing Method

    Direct Thermal

  • Operation Modes

    PC Connected (Dumb Printer, Template), Connected to Host Peripheral (Serial Interface)

  • Cutter

    Automatic (Built-In)

  • Cutter Life

    Up to 300,000 cuts (liner only), Up to 150,000 cuts (label and liner)

  • Maximum Print Width (inches)

    3.88" (98.6 mm)

  • Minimum Print Length

    1" (25.4 mm)

  • Media Sensor & Position

    Fixed Transmissive, Edge

  • Media Types

    Drop-In Roll or Fanfold (rear slot) Continuous Label or Paper, Die Cut Labels, Tag Stock

  • Maximum Roll Size (outside diameter)

    4" (101.6 mm)

  • Media Width

    0.7" - 4.0" (19 mm - 101.6 mm)

  • Media Thickness - With Adhesive

    0.003" - 0.007" (0.076mm-0.178mm)

  • Media Thickness - Without Adhesive

    0.003" - 0.006" (0.076mm-0.153mm)

  • Control Panel

    On/Off, Feed, Cut

  • Status Indicator

    LED (3 Colors)

  • Printer Emulation

    Raster, ESC P, Template

  • Internal Fonts

    ESC P: Helsinki, Letter Gothic Template (Bitmap & Outline): Helsinki, Brussels, Letter Gothic

  • Internal Font Sizes

    ESC P: 21, 28, 44, 56, 88, 120 dots Template (Bitmap): 21, 28 dots Template (Outline): 35 - 380 dots (20 sizes)

  • Internal Font Styles

    ESC P: Bold, Italic, Underline Template: Bold, Italic, Vertical, Outline, Shadow, Outline/Shadow

  • Memory

    2 MB

  • Memory for Transferred Data (number)

    Up to 99 Template Files

  • Symbols for Windows

    1379 ( No. of Clip arts in P-touch Editor)

  • Multiple Copies

    Up to 9999 Copies (PT-Editor)

  • Mirror Printing

    Yes

  • Vertical Printing

    Yes

  • Rotate Printing

    Yes

  • Date/Time Stamp

    Through PC

  • Bar-codes Types

    Linear: Code39, ITF (I-2/5), UPC-A, UPC-E, EAN8, EAN13, Codabar (NW-7), Code128, UCC/EAN128, Postnet, Laser Bar Code, ISBN-2, ISBN-5, GS1 DataBar (RSS) 2-Dimensional: PDF417, QR Code, Micro QR Code, Data Matrix, Maxicode

  • Microsoft Add-ins

    Office 2000/2003/2007

  • Database File Compatibility

    .csv, .txt, .mdb, .xls and Microsoft SQL Server

  • Software

    P-touch PT-Editor 5.0, Transfer Manager 2.1, Transfer Express, Library 2.1

  • Networking

    None

  • Interface

    USB (1.1 or 2.0), Serial (RS-232C)

  • Compatibility

    PC

  • Operating System

    Windows 2000 Professional/XP/7, Windows Vista

  • Power Supply

    120VAC 60 Hz 1.8A

  • Power Switch

    Mechanical

  • Energy Star

    Yes

  • Dimensions

    Housing: 6.8 x 9.0 x 6.2" / 17.27 x 22.86 x 15.74cm

  • Weight

    4.0 lbs (1.81 kg) without RD Roll

  • UPC Code

    012502623540

About Brother TD-4000

FEATURED REVIEWS

Perfect Fit

By bohemiaken

MY small business has a retail store so I was looking for a good multi-purpose label printer that had barcode label printing capabilities. The TD-4000 is by far the best fit for my needs today and the free software updates are terrific!

By 4444

Works very well like all my other brother products

The Brother TD-4000 Desktop Label and Barcode Printer is a complete barcode software and desktop label printing solution. The TD-4000 is a true GDI printer, fully compatible with Windows OS computers - including Windows 7. This desktop label printer and barcode printer will print on most medium/high sensitivity direct thermal media in high quality 300 dots/inch print resolution and comes ready with everything you need to start printing including the USB cable and PT-Editor 5, a powerful but easy-to-use design software application. Use PT-Editor 5 to add barcodes, lines, curves, text and graphics and print by typing in your data or link to a variety of data files which includes CSV files, Microsoft Excel spreadsheets, Microsoft Access and SQL Server databases and print by selecting one or multiple records. Or, use your own Windows-based software application as the TD-4000 comes with a WHQL certified Windows-based printer driver and is compatible with many third party Windows-based software applications.

Use PT-Editor to add bar codes, lines, curves, text and graphics and print by typing in your data or link to a Microsoft Excel or Access database file or SQL server and select one or multiple records. Or, use your own Windows-based software application as the TD-4000 comes with a WHQL certified Windows-based printer driver and is compatible with many third party Windows-based software applications.

Unlike competitive barcode label printer models that require printing using their resident fonts and barcodes, the TD-4000 is also host-based and can print text, barcodes and graphics from software, up to 4.3 inches/second. The built-in automatic cutter reliably trims receipts and continuous labels to your desirable length or configures it to cut after printing die cut labels - either one at a time or after printing a strip of multiple labels.

Brother TD-4000 Features

  • Complete barcode software and label printing solution
  • Uses Genuine Brother or most medium/high sensitivity direct thermal label, receipt and tag media up to 4" wide
  • Fully compatible with Windows OS computers, including Windows 7
  • Prints high quality 300 dpi text, graphics and barcodes
  • Fast, host based printing - up to 4.3 ips
  • Download templates and print from a barcode scanner, keyboard or other standalone device
  • Reliable built-in automatic cutter
  • Clam shell cover and no spindle, drop in roll design
  • USB 2.0 and RS-232C serial interface connectivity

Key Features

  • Complete barcode software and label printing solution
  • Fully compatible with Windows OS computers, including Windows 7
  • Prints high quality 300 dpi text, graphics and barcodes
  • Fast, host based printing - up to 4.3 ips
  • Reliable built-in automatic cutter
  • Clam shell cover and no spindle, drop in roll design

What's in the box:

  • Brother TD-4000 Desktop Label and Barcode Printer
  • Power Cord
  • USB Cable
  • CD
  • RD Starter Roll-Continuous Length Label (7 m or 22.97')
  • RD Starter Roll-2x1" Labels (250 labels)
  • User Guide
  • Software Bundle
  • Brother 1 Year Limited Warranty
