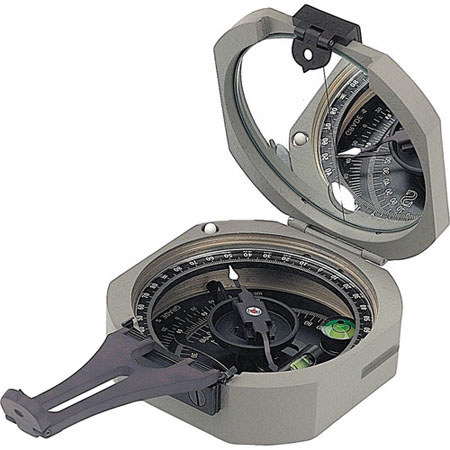

Brunton Conventional Pocket Transit, 0-90deg. Quadrant Scale
See all Brunton items

Brunton Conventional Pocket Transit, 0-90deg. Quadrant Scale, Long Bar Alnico II Magnets

SKU: BRUF2001
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Brunton Conventional Pocket Transit, 0-90deg. Quadrant Scale Specifications

  • Resolution

    1deg.

  • Accuracy

    0.5deg.

  • Dimensions

    3.1x2.8x1.3" (8x7x3 cm)

  • Weight

    6.8 oz (193 g)

About Brunton Conventional Pocket Transit, 0-90deg. Quadrant Scale

The Brunton Conventional Pocket Transit (0-90 deg. Quadrant Scale) is an analog navigation device built to resist magnetic interference and deliver accurate readings. This configuration of the Transit series uses Alnico II magnets to resist demagnetization and align with magnetic north better than most magnetic materials. An induction dampened needle and V-cut sapphire bearing improve the accuracy and speed of readings. For enhanced reliability and accuracy, the cast aluminum housing can be tripod mounted with Brunton's ball and socket mount.

Brunton Conventional Pocket Transit, 0-90deg. Quadrant Scale Features

  • Sapphire V-cut jewel bearing
  • 0-90deg. scale
  • 5% grade scale increments
  • +/-90deg. vertical angle measurement
  • +/-180deg. east/west magnetic declination adjustment
  • Precision aligned mirror with see-through window
  • Induction dampened needle
  • Short and long azimuth and vertical angle sights
  • Horizontal and vertical axis bubble levels
  • Ball and socket tripod mountable

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Sapphire V-cut jewel bearing
  • 0-90deg
  • Scale
  • 5% grade scale increments
  • +/-90deg
  • Vertical angle measurement

What's in the box:

  • Brunton Conventional Pocket Transit
  • Leather Case
  • Brunton Warranty
