Brunton GEO Pocket Transit Compass, 0-90deg. Scale

Brunton
Made in USA

Our Price

$599.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Brunton

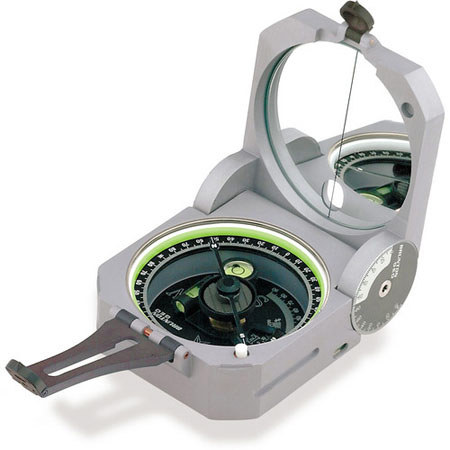

The Brunton GEO Pocket Transit Compass (0-90deg. Scale) is a specially engineered analog navigation device built to deliver accurate readings in any hemisphere. This configuration of the Transit series uses a single rare-earth magnet to resist demagnetization and provides fast readings due to its relative magnetic strength.

A hinged clinometers allows simultaneous trend and plunge measurements that are accurate to +/-2deg. The compass housing is machined from a single billet of 6061-T6 aluminum and is o-ring sealed to provide waterproof performance

Brunton Features

  • Sapphire jewel bearing
  • 0-90deg. scale
  • 5% grade scale increments
  • +/-90deg. vertical angle measurement
  • +/-180deg. east/west magnetic declination adjustment
  • +/- 0.5deg. accuracy with 1deg. graduation marks (vert and azimuth)
  • Hinged clinometer with 1deg. increments, 0.5deg. accuracy
  • Precision aligned mirror with see-through window
  • Induction dampened, low center of gravity needle
  • Buck Horn-style azimuth and vertical angle sights
  • Horizontal and vertical axis bubble levels
  • Ball and socket tripod mountable

Brunton Specifications

Resolution
Compass: 1deg.
Clinometer: 0.5deg.
Accuracy
Compass: 0.5deg.
Clinometer: 2deg.
Increments
Compass: 1deg.
Clinometer: 1deg.
Dimensions
3.8x2.8x1.3" / 9.65x7.11x3.30cm
Weight
12.8oz / 362.87g
