C2G

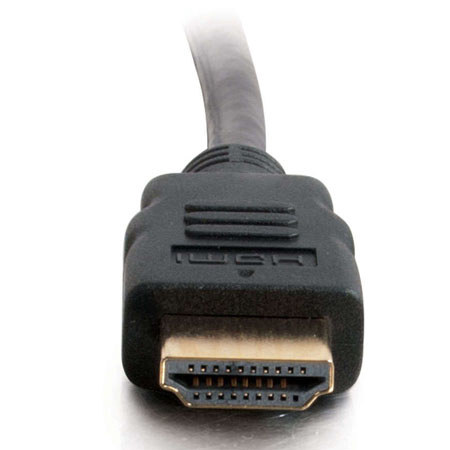

C2G 1m (3.28') High Speed HDMI with Ethernet Cable

SKU: C2G40303 MFR: 40303
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$5.99
Qty:

Add to Wishlist In Stock

About this item

The Cables To Go 1m (3.28') High Speed HDMI with Ethernet Cable is perfect for home theater or desktop audio video applications requiring high speed HDMI features and video resolutions up to 1080p. The Ethernet capabilities of the cable allow a user to connect multiple Ethernet enabled HDMI devices through a single Ethernet connection. This cable supports bandwidth applications up to 340MHz/10.2 Gbps as well as high speed HDMI features including, 3D, Deep Color, x.v.Color, Dolby True HD and DTS-HD Master Audio.

Technical Specs

Nominal Velocity of Propagation 10.2Gbps
DC Resistance 300V
Dielectric Strength AC 500V/minute
Insulation Resistance 100
Nominal Attenuation 300kHz-825MHz - <5dB, 825MHz-2.475GHz - <5dB, 2.475GHz-4.125GHz - <12dB, 4.125GHz-5.1GHz - <20dB
Voltage Rating 30V
Minimum Bend Radius 60deg.
Temperature Rating 80deg.C
Operating Temperature Range -20deg. - 80deg.C
Storage Temperature Range -25deg. - 85deg.C
Conductor 1 (5 pair): Conductor Type 30AWG (7/0.10), Tinned Copper
Conductor 1 (5 pair): Insulation Foamed PE SKIN, Red/White, Brown/White, Blue/White, Green/White, Black/White
Conductor 1 (5 pair): Drain Wire 30AWG (7/0.10), Tinned Copper
Conductor 1 (5 pair): Shield Aluminum Foil
Conductor 1 (5 pair): Coverage 100%
Conductor 1 (5 pair): O.D. 0.8mm
Conductor 2: Conductor Type 30AWG (7/0.10), Tinned Copper
Conductor 2: Insulation HDPE, Yellow, Red, Green, Purple
Conductor 2: O.D. 0.6mm
Connectors (2): Connector Type HDMI
Connectors (2): Pin Construction Phosphor Copper
Connectors (2): Plating 1um Gold
Overall Cable: Drain Wire 30AWG (07/0.10), Tinned Copper
Overall Cable: Foil Shield Aluminum Foil, 100% Coverage
Overall Cable: Braided Shield 16/4/0.12, Al/Mg
Overall Cable: Jacket PVC
Overall Cable: O.D. 6.0 ± 0.2mm
Cable Length 1m (3.28')
Dimensions (HxWxL) Connectors (2): 10.00x20.10x37.10mm (0.39x0.79x1.46")
Weight 0.12lbs (0.05kg)
