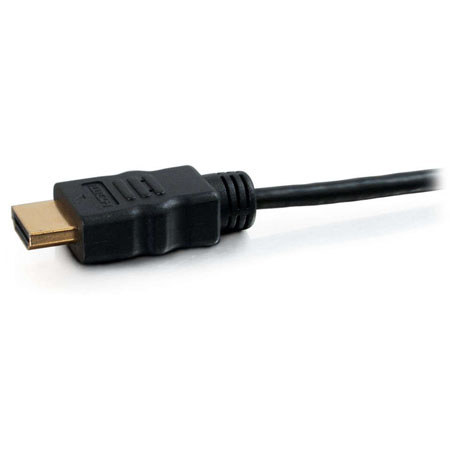

C2G 1m (3.28') High Speed HDMI Micro with Ethernet Cable

C2G
SKU: C2G40309 MFR: 40309
C2G : Picture 1 thumbnail C2G : Picture 2 thumbnail C2G : Picture 3 thumbnail

See all shipping options

In Stock & Ready to Ship

Our Price

$8.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About C2G

The Cables To Go 1m (3.28') High Speed HDMI with Ethernet Micro Cable is perfect for a hand-held mobile or cell phone connectivity for home theater or desktop applications requiring high speed HDMI features and video resolutions of up to 1080p. The Ethernet capabilities of the cable allow a user to connect multiple Ethernet enabled HDMI devices through a single Ethernet connection. This cable supports bandwidth applications up to 340MHz/10.2 Gbps as well as high speed HDMI features; including, 3D, Deep Color, x.v.Color, Dolby True HD and DTS-HD Master Audio.

C2G Specifications

Nominal Velocity of Propagation
10.2Gbps
DC Resistance
300V
Dielectric Strength
AC 500V/minute
Insulation Resistance
100
Nominal Attenuation
300kHz-825MHz - <5dB, 825MHz-2.475GHz - <5dB, 2.475GHz-4.125GHz - <12dB, 4.125GHz-5.1GHz - <20dB
Bandwidth
340 MHz/10.2 Gbps
Voltage Rating
30V
Minimum Bend Radius
60deg.
Temperature Rating
80deg.C
Operating Temperature Range
-20deg. - 80deg.C
Storage Temperature Range
-25deg. - 85deg.C
Conductor 1 (5 pair)
Conductor Type: 30AWG (7/0.10), Tinned Copper
Insulation: Foamed PE SKIN, Red/White, Brown/White, Blue/White, Green/White, Black/White, O.D.: 0.8mm
Drain Wire: 30AWG (7/0.10), Tinned Copper
Shield: Aluminum Foil, 100% Coverage
Conductor 2 (4 conductors)
Conductor Type: 30AWG (7/0.10), Tinned Copper
Insulation: HDPE, Yellow, Red, Green, Purple, O.D.: 0.6mm
Connectors 1
Connector Type: HDMI: Type A
Pin Construction: Phosphor Copper
Plating: 1um Gold
Connectors 2
Connector Type: HDMI: Type D
Pin Construction: Phosphor Copper
Plating: 1um Gold
Overall Cable
Drain Wire: 30AWG (07/0.10), Tinned Copper
Foil Shield: Aluminum Foil, 100% Coverage
Braided Shield: 16/4/0.12, Al/Mg
Jacket: PVC, Black, O.D.: 6.0 ± 0.2mm
Cable: Length
1m (3.28')
Dimensions (HxWxL)
Connectors 1: 10.00x20.10x37.10mm (0.39x0.79x1.46")
Connectors 2: 7.30x10.50x26.30mm (0.28x0.41x1.03")
Weight
0.09lbs (0.04kg)
