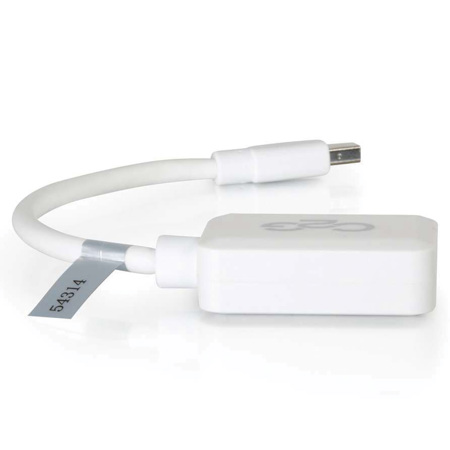

C2G 8" Mini DisplayPort Male to HDMI Female Adapter Converter, White
See all C2G items

C2G 8" Mini DisplayPort Male to HDMI Female Adapter Converter, White

SKU: C2G54314
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

C2G 8" Mini DisplayPort Male to HDMI Female Adapter Converter, White Specifications

  • Voltage Rating

    30V

  • Conductor Resistance

    At 20deg.C max

  • Insulation Resistance

    10MOhms/km

  • Time Delay

    5.2ns/m (max)

  • Attenuation:

    5.02dB at 100-450MHz
    12.595dB at 2GHz
    22.395dB at 4GHz
    32.195dB at 6GHz
    7.69dB at 1GHz
    17.495dB at 3GHz
    27.295dB at 5GHz
    37.095dB at 7GHz

  • Operating Temperature

    0 to 50deg. C / 32 to 122deg. F

  • Storage Temperature

    -25 to 70deg. C / -13 to 158deg. F

  • Approvals

    CE

  • Conductor (2 Conductor, 5 Pair)

    32AWG (7/0.08TC)
    Insulation: FM-PE, ID:0.63±0.05mm
    Drain: 32AWG (7/0.08TC) HD-PE ID:0.63±0.05
    Shield: AL-Mylar Wrap
    Coverage: 100%

  • Conductor (5 Conductors)

    32AWG (7/0.08TC)
    Insulation: HD-PE, ID:0.5±0.05mm

  • Overall Cable

    Jacket: PVC
    Shield: AL-Mylar-Coverage 100%
    Braid-16/9/0.12
    Drain: 2:30AWG (7/0.08 BC)
    OD: 5.2±0.2

  • UPC Code

    757120543145

About C2G 8" Mini DisplayPort Male to HDMI Female Adapter Converter, White

The C2G 8" Mini DisplayPort Male to HDMI Female White Adapter Converter is an ideal solution for adapting the Mini DisplayPort output of a small laptop or tablet so that it may be connected to a HDTV or projector which accepts a HDMI input. This adapter converter carries a digital audio/video signal, supports up to a 1080p resolution and meets the requirements of high performance applications.

C2G 8" Mini DisplayPort Male to HDMI Female Adapter Converter, White Features

  • Adapts a Mini DisplayPort output to HDMI
  • Carries a digital audio/video signal
  • Supports up to a 1080p resolution

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Adapts a Mini DisplayPort output to HDMI
  • Carries a digital audio/video signal
  • Supports up to a 1080p resolution

What's in the box:

  • C2G 8" Mini DisplayPort Male to HDMI Female Adapter Converter
  • C2G Lifetime Warranty
