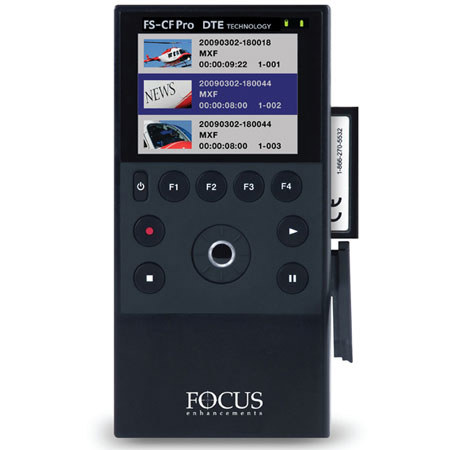

Canon FS-CF Pro Portable Compact Flash DTE Recorder, HD Video Recording for Canon HDV and Mini-DV Camcorders

SKU: CAFSCFPRO

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Canon FS-CF Pro Recorder Specifications

  • Video System

    NTSC

  • Configuration

    Portable

  • Technology

    DTE Compact Flash Recorder

  • Video

    DV: 480i/p, 8-bit 4:1:1 (NTSC-DV)
    HDV: 720/24p, 720/30p, 1080/60i
    DTE File Formats: AVI Type 1, AVI Type 2, Canopus AVI, Matrox AVI, MXF, Quicktime, RawDV

  • Audio

    DV
    2-Channel (16-bit, 48kHz)
    4-Channel (12-bit, 32kHz) (RawDV only)
    HDV
    MPEG-1 Audio Layer II

  • Recording

    Dedicated VTR Record Buttons, Retro Recording, Scene Marking, MetaData Assigning

  • Playback

    Play, Stop, Forward Index, Back Index, Forward, Rewind, Loop Playback Modes

  • File Transfer Method

    FireWire 400, USB 2.0, CompactFlash

  • Interface

    Front Panel Keys with LCD screen

  • Controls

    Power, 4 User-Programmable Function Keys, Record, Stop, Play, Pause

  • Input and Output Connectors

    FireWire: 6-Pin (x1 Input/Output)
    USB: USB 2.0 Type-A (x1 Input/Output)
    Remote: GPI/RS-232C

  • Time Code

    DV Embedded Timecode (Drop or Non-Drop)

  • Mounting

    Belt Mount or On-Camera

  • Compatible Camcorders

    MiniDV/HDV Camcorders
    Canon XL-H1, XH-A1, XH-G1

  • Compatible NLE Systems

    Adobe Premiere
    Adobe Premiere Pro 2.0
    Adobe Premiere Elements
    Apple Final Cut Express
    Apple Final Cut Pro
    Apple iMovie
    Avid Media Composer Adrenaline
    Avid Xpress Pro
    Avid Newscutter Adrenaline
    Canopus Edius Pro
    Canopus Edius Broadcast
    Matrox RT/RTX
    Matrox Axio
    Sony Vegas
    Ulead Media Studio Pro

  • Operating Temperature

    32-104°F (0-40°C)

  • Storage Temperature

    -40-140°F (-20-60°C)

  • Power Requirements

    11-18VDC

  • Power Consumption

    7.5W

  • Dimensions (WxHxD)

    2.8 x 5.4 x 1.3" (7 x 13.7 x 3.2cm)

  • Weight

    12 oz (0.3kg)

About Canon FS-CF Pro Recorder

The Focus Enhancements FS-CF Pro is a portable direct-to-edit recorder that captures SD and HD video to Compact Flash cards. Designed for Canon camcorders, the FS-CF Pro supports both DV and native HDV acquisition in a variety of resolutions and has the ability to record over 2.5 hours of footage to a 32GB card. By simply swapping in a fresh card when one is full, users can shoot the whole day without having to offload.

Just shoot, connect and edit-no more tape to log and capture, your clips are ready when you are! The FS-CF Pro provides a number of upgrades over the FS-CF, including clip thumbnail viewing, proxy content playback, MPEG4 proxy clips, FTP support and wired/wireless custom metadata logging, DV/HDV MXF support, user-definable 10-second retro cache and lower power consumption.

Canon FS-CF Pro Recorder Features

  • Solid State Acquisition to Editing in One Step: By recording to solid state Compact Flash cards, the Focus FS-CF Pro can be used in extreme conditions, including high-shock and high-altitude environments.
  • View Thumbnails and Video Clips: With the FS-CF Pro, you can view thumbnails and video clips on its brilliant color display. Thumbnails can also be viewed on a web page when the FS-CF Pro is connected to a network.
  • Assign Custom Metadata on the Fly: With the FS-CF Pro, you can personalize and optimize workflow-while you shoot. With your wireless handheld device or laptop, you can access the FS-CF Pro through a browser.
  • Engineered for Portability, Durability and Ease of Use: Only 2.75" wide, 5.4" high and 1.25" deep (7 x 13.7 x 2.3 cm), the FS-CF Pro packs a wealth of functionality into a sleek and durable package that weighs only 12 ounces.
  • Industry Standard File Format Support: The Focus FS-CF Pro brings the most popular DTE file formats to solid state recording. When used w/25Mb/s HDV cameras, the FS-CF Pro supports QuickTime 1080i50/60 & 720p25/30 recording for Final Cut Pro use, MXF HDV support for Avid & M2T 720p/1080i recording.
  • Removable Compact Flash Slot: The FS-CF Pro features a CF card slot on its side for insertion of standard Type 1, UDMA, 30MB/s minimum Compact Flash Cards (16GB min.). Compact Flash cards feature a fast interface and very high capacities (currently up to 64GB) at low cost.
  • Transform Workflow at the Recording Stage: Not only does the FS-CF Pro enable you to go straight from shooting to editing by recording video in the NLE-compatible file format of your choice, but it allows you to add custom metadata to footage while you're recording.
  • Native QuickTime HDV & MXF Support: With the FS-CF Pro, you can record 1080i 50/60 or 720p 30 clips as native QuickTime HDV. The FS-CF Pro extracts and decodes the audio from the incoming HDV stream, combines it with video stream and wraps is as a QuickTime HDV file.
  • Transform Workflow with Industry Standard Removable Media: The FS-CF Pro allows you to go straight from shooting to editing by recording video in the NLE-compatible file format of your choice.

What's in the box:

  • Canon FS-CF Pro Portable Compact Flash DTE Recorder
  • Li-Ion Battery Pack
  • Power Adapter with Cable
  • USB 2.0 Cable
  • 4-Pin to 6-Pin FireWire Cable
  • 6-Pin to 6-Pin FireWire Cable
  • User Guide
  • Canon Warranty
