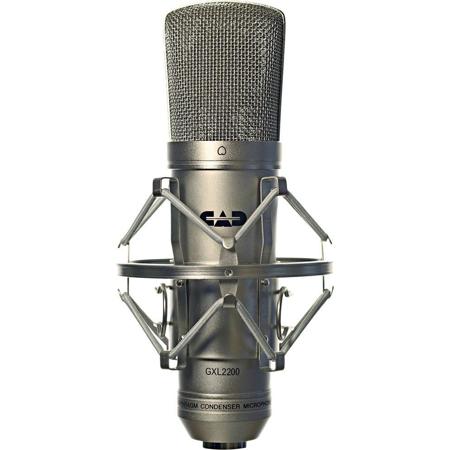

CAD Audio GXL2200 Large Diaphragm Cardioid Condenser Microphone, 30Hz-20KHz Frequency Response, 75 Ohms Impedance, -36dBV Sensitivity

SKU: CAGXL2200

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

CAD Audio GXL2200 Specifications

  • Operating Principle

    Externally-biased condenser

  • Polar Pattern

    Cardioid

  • Frequency Response

    30Hz to 20KHz

  • Sensitivity

    -36dBV (16mV) at 1 Pa

  • Impedance

    75 Ohms

  • Max SPL

    130dB, 1% THD

  • Self Noise

    20dBA

  • Power Requirements

    P48, 3mA

  • Applications

    Studio Vocals, Voice-over, Choir, Acoustic Instrument, Strings, Piano, Cymbals/Overheads

  • UPC Code

    631922102208

About CAD Audio GXL2200

The CAD Audio GXL2200 condenser microphone consists of a thin conductive membrane stretched very close to a stationary plate. High voltage is applied between the membrane and the plate. As the membrane vibrates, electrons move. These moving electrons are sensed as voltage. This voltage can be strengthened (but not necessarily increased) by silicon. The GXL2200 is inspired cosmetically, mechanically and electrically by early generations of European masters. Features include (but are not limited to) an internal hi-pass filter. Elastic shock mount and protective pouch are included. P48 (48V) phantom power is required.

What's in the box:

  • CAD Audio GXL2200 Large Diaphragm Cardioid Condenser Microphone
  • Elastic Shock Mount
  • Protective Pouch
  • CAD Audio 2 Year Warranty
