Item Includes
VB101, AC Cable, PA-V16 AC Power Adapter, RS-232C Cable (MiniDIN-Dsub9pin Female Sub, RS-232C Cable (MiniDIN-MiniDIN), CD-ROM, Owners Manual, Warranty Card.
|
Description

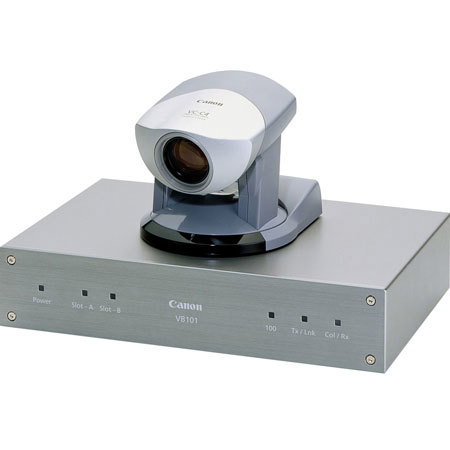

It's never been easier to Broadcast! Transmit live images with ease and flexibility. Create web pages with moving or still images and remote camera controls! The VB101 transmits live images via the Internet or on an Intranet!
It's never been easy to broadcast video or monitor remote locations, and control multiple cameras too. The VB101 makes web-based videos a simple reality for everyone. With the VB101, you view and control cameras remotely. Use your web browser to easily control the image display and camera. Use the VB101 with the software included, Webview Livescope Java Viewer; or with the optional Webview Livescope MV MultiViewer.
Maximum image capture rate of up to 30 fps. Motion-JPEG is used for image compression. Image quality and capture rate can be set through authorized access of the VB101 using a web browser. A maximum of 2 cameras (Canon VC-C4/VC-C4R/VC-C3) can be remotely controlled. You can zoom and limit the field-of-view. Camera switching and image display, using preset configuration, is possible from the PC viewing the image. Image display and remote camera operations can be easily accomplished using a web browser. (Standard TCP/IP, HTTP protocols are used). Automatic switching between 10 Mbps and 100 Mbps ethernet connections.
Configuring and maintaining this system over a web browser is easy. Initial network configurations are easy to set up using software supplied with the server. Network error and access information are automatically logged in a file, which can be forwarded to a specified e-mail address. In addition to the server configuration data, web page content can be stored on a flash memory card, allowing for the image and information content to be transmitted via the web at any time. 2 PCMCIA slots can be used for a standard modem or a flash memory card. Sensors can be attached through IN/OUT device ports. Signals or scheduling commands issued through the IN/OUT device ports can be used to store still images. Stored images can then be searched or displayed via a web browser.
Compatible PCMCIA Cards: Modem Card: CreditCard Modem56
Flash Memory Card: PCFCA-40MS SFDO64HT Compact Flash (FC-8M, FC-32M, FC-64M, FC-128M) and PCMCIA Adaptor Compact Flash 16M Picture Card (Kodak)/PCCF-ADP (I-O Data) |
Features
 |
Specifications: |
|
-------------- |
|
Software: |
|
--------------- |
|
OS: DRYOS (Canon Realtime OS) |
|
Protocol: TCP/IP, HTTP, BOOTP, FTP, SMTP |
|
Image Compression Technique:Motion-JPEG (Image quality range 1-99), JPEG (for st ill images |
|
Image Compression Rate: 0.1 — 30 fps (variable) |
|
Output Image Size: 160 x 120, 320 x 240, 640 x 480 |
|
Display Image Size: 80 x 60, 160 x 120, 320 x 240, 640 x 480, and full screen size |
|
HTTP Server: Apache 1.3.0 Subset |
|
Log Management: Syslog (mail, ftp, flash memory recording possible) |
|
Camera Control Operations:Pan, tilt, zoom, brightness, shutter speed etc. (compa tible cameras: Canon VC-C4/VC-C4R/VC-C3), field-of-vie w, control time, number of camera control participants . |
|
Network Operations: Access restriction (password/host), video connection time, simultaneous connection count (max: 20). |
|
Image Storage: Flash memory card (optional) |
|
-------------- |
|
INTERFACE: |
|
------------- |
|
Image Input : 4 Inputs (BNC x 2, RCA x 2; NTSC/PAL) |
|
Serial Ports: RS-232C x 3 (mini DIN 8, for camera use x 2, for initial setting x 1) |
|
Networking: Ethernet x 1 (RJ45, 10 BaseT/100 Base TX auto detect) |
|
Expansion Slots: PCMCIA Type II (5V) x 2 |
|
Output Image Size: 160 x 120, 320 x 240, 640 x 480 |
|
Display Image Size : 80 x 60, 160 x 120, 320 x 240, 640 x 480, and full screen size |
|
Display LEDs: Power On/Off, network status, PCMCIA status display |
|
Dimensions:9" (w) x 6" (d) 2 1/16" (h), base unit only / 248 mm (w) x 165 mm (d) x 52 mm (h), base unit only |
|
Weight : 2 lbs. 10 oz./1300 g (base unit only) |
|
Power Source: AC adapter (100-240 V, 50/60 Hz) included, power consumption 25 W or less. |
|
