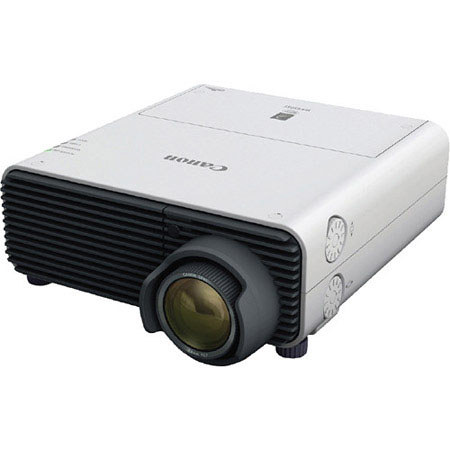

Canon REALiS WX450ST D WXGA+ DICOM Simulation Medical Imaging Projector, 4500 Lumens, 2000:1 Contrast Ratio, 5W Built-in Speaker, 260W Lamp

SKU: CAWX450STD MFR: 8679B010

About Canon WX450ST D

The Canon REALiS WX450ST D Pro AV Short Throw Compact Installation LCOS Projector features high performance WXGA+ (1440 x 900) resolution, an output of 4500 lumens, 2000:1 contrast ratio and advanced AISYS technology. The projector's DICOM Simulation Mode allows for the viewing of monochrome digital X-Rays, CAT Scans and MRI's with accurate grayscale rendition and precise detail, simulating the results of devices compliant with the Digital Imaging and Communications in Medicine (DICOM) Part 14 standard. The color temperature can be changed between 5 presets, 3 user defined color temperatures, clear base and blue base- making the projector ideal for those in the medical education and training fields.

Featuring a throw ratio of 1:0.571, the WX450ST D can project a 7 foot wide screen from just under 4 feet away. Other outstanding features of this widescreen projector include 4 Point Keystone Correction and USB based playback of JPEG image files directly from a thumb drive without a PC connected. A built in edge blend processor allows for the display of multi-projector seamless large images. The "Picture by Picture" feature allows for the simultaneous use of high quality digital video inputs (HDMI and DVI) in split screen mode.

The WX450ST D projector offers installation flexibility, exceptional optics and wide range of features that will deliver brilliantly in some of the most challenging environments.

Canon WX450ST D Specifications

Native Resolution
WXGA+ (1440 x 900)
4500 Lumens
Contrast Ratio
Digital Keystone (Vertical)
0-75 degrees (manual)
Digital Keystone (Horizontal)
±10 degrees (manual)
Optics: Throw Ratio
Input: RJ-45
Input: Stereo Mini Jack
Output: Stereo Mini Jack
Built-in Speaker
Control Terminal
D-sub 9pin: RS-232C
Network: RJ-45 (100BASE-TX / 10BASE-T)
Lamp Type
Fan Noise (Quiet/Normal)
32dB (Quiet) / 38dB (Normal)
Temperature Operating
32deg. to 104deg. F (0deg. to 40deg. C)
Dimension (W x H x D)
337 x126 x 362mm / 13.27 x 4.96 x 14.25" (without stick-out)
337 x132 x 415mm / 13.27 x 5.20 x 16.34" (with stick-out)
