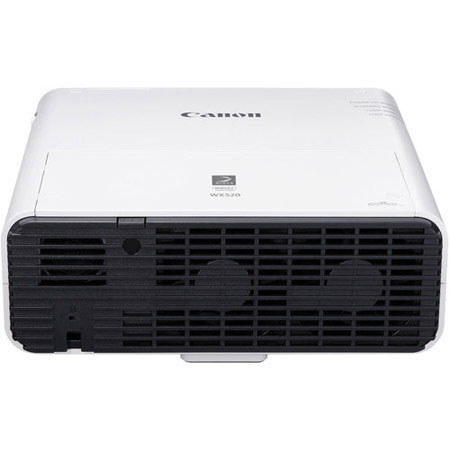

Canon REALiS WX520 WXGA+ Multimedia Projector, 5200 Lumens, 16:10 Aspect Ratio, 2000:1 Contrast Ratio, 1.43 - 2.57:1 Throw Ratio

Canon WX520: Picture 1 thumbnail Canon WX520: Picture 2 thumbnail Canon WX520: Picture 3 thumbnail Canon WX520: Picture 4 thumbnail Canon WX520: Picture 5 thumbnail
Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Canon WX520

The Canon REALiS WX520 Pro AV Compact Installation LCOS Projector features high performance WXGA+ (1440x900) resolution and a lightweight (13 lbs), compact (13.3" x 4.6" x 16.9") design. With an output of 5200 lumens, 2000:1 contrast ratio and advanced AISYS technology, it delivers outstanding color richness, image brightness and clarity while taking up less space than would be expected by a projector with such powerful performance.

This projector is full of outstanding features such as 4-point keystone adjustment, digital and physical lens shift, exacting image detail adjustments and controls which combine with the fixed F-stop of its superb Canon lens to project crisp and compelling content. It is equally well suited for graphics, text and HD video presentation, with a 16:10 aspect ratio.

You will have more flexibility in installation as well, thanks to its small footprint, light weight and true versatility with your choice of mounting, whether horizontal, vertical or on the ceiling. It is possible to create multi-projector arrays by stacking two REALiS WX520 projectors thanks to the flat top and bottom design. A 12,000 hour long-life filter makes maintenance easier than ever, while network management and streaming content capability seamlessly integrates the REALiS WX520 into your technical infrastructure.

A host of multimedia functions including support for USB memory sticks, JPEG support and a built-in speaker makes the REALiS WX520 the perfect partner for all your presentation sources. For corporate, educational, fine arts and marketing applications, the convenience, power, capability and advanced technology of the WX520 can achieve results far beyond expectations.

Canon WX520 Features

  • Native WXGA+ Resolution (1440 x 900): For outstanding reproduction of high resolution applications and HD video, the native WXGA+ (1440 x 900) resolution of the REALiS WX520 delivers sharp rendering of images and pictures
  • AISYS-Enhanced LCOS Technology: The REALiS WX520 features the newest version of Canon's Aspectual Illumination System, AISYS 5.0, producing amazing high brightness and deep, rich color from a surprisingly small footprint
  • 5200 Lumens: Project a bright, clear, strong image in a variety of lighting situations thanks to the impressive 5200 lumens rating of the REALiS WX520. Even in Power Saver Mode, the REALiS WX520 delivers a powerful 4000 lumens
  • Brilliant Image Quality: The projector features a next generation Canon AISYS 5.0 optical engine for enhanced contrast and brightness through improved light management, working to maximize the imaging performance of the projector's advanced Canon LCOS display panels
  • Compact Design: Measuring 13.3x4.6x16.9", the REALiS WX520 is 1 of the smallest projectors in its class, offering high end performance in a compact package. When you need a big, bright, clear image but your installation location is challenging, there's no need to compromise performance
  • True Network Management Capability: The REALiS WX520 boasts the capability for true network management with a range of features, including full control over IP
  • Various Multimedia Functions: Advanced multimedia functions include 4-point keystone correction, simultaneous Picture-by-Picture HDMI and DVI split-screen display and built-in edge blending with easy integration adjustment
  • Quiet Operation: Not only will the REALiS WX520 take up less space, it will also be a quiet companion to your presentation, with a low fan noise rating of 38dB, going down to 32dB in Power Saver mode. Your audiences will be totally concentrated on what they see and only on what you want them to hear

Canon WX520 Specifications

Imaging Device
0.70" LCOS Reflective LCD panels x 3
Aspect Ratio
Native Resolution
WXGA+ (1440 x 900)
5200 Lumens / 4000 (Power Save Mode)
Contrast Ratio
Digital Keystone (Vertical)
±20 degrees
Digital Keystone (Horizontal)
±20 degrees
Throw Ratio
1.43 - 2.57:1
Ceiling / Rear / Rear-Ceiling / Upward / Downward
Tilt Angle
Adjustable feet up to 6 degrees
Scanning Frequency
H: 15-75 kHz, V: 50-85 Hz; Dot Clock: 162 MHz
Digital PC Input
Component Input
1080p / 1080i / 720p / 576p / 576i / 480p / 480i
Digital Video Input
1080p / 1080i / 720p / 576p / 480p
(Input) DVI-I 29pin
Analog PC / Digital PC input
(Input) RJ-45
(Input) Stereo Mini Jack
Stereo Input x2
(Output) Stereo Mini Jack
Stereo Output x1
Built-in Speaker
5W (Mono)
Control Terminal
D-sub 9pin: RS-232C
Network: RJ-45 (100BASE-T / 100BASETX / 10-BASE-T)
Lamp Type
250W NSH (AC)
Lamp Life
3000 hours / 4000 hours (Economy Mode)
Remote Control Sensor
Wireless Infrared (Front / Back Wired Remote Control Connection)
Fan Noise (Quiet/Normal)
37dB (Normal) / 31dB (Power Saver)
Power Consumption
355W (Normal) / 285W (Power Saver) / 1.0W (Standby) / 0.35W (Standby with LAN off)
Power Voltage
AC 100 - 240V, 50/60Hz
Temperature Operating
32deg. to 104deg. F (0deg. to 40deg. C)
Temperature Storage
14deg. to 140deg. F (-10deg. to 60deg. C)
Dimension (WxHxD)
13.3 x 4.6 x 16.9" / 33.78 x 11.68 x 42.92 cm (without lens, including protruding parts)
13.0 lbs / 5.89 kg without lens
