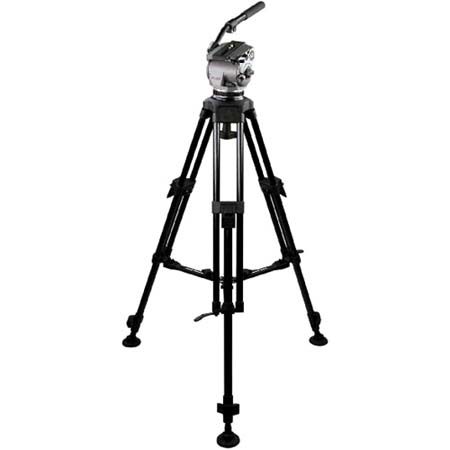

Cartoni AL Smart Stop ENG Carbon Tripod, Focus DV Fluid Head, Mid-Level Tripod Spreader & Soft Case

SKU: CCF106 MFR: F106
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$2,895.00 List Price

Our Price

$2,029.90 $81 per week
Free Expedited Shipping
Add to Wishlist

About the Cartoni AL

Cartoni AL Smart Stop ENG Tripod is a 2-Stage Carbon fiber tripod with 100mm base and a a 132 lb/60 kg load capacity. Its minimum height is 22.6"/51cm, while it's maximum height is 72"/ 162cm, with a folded height of 32.8"/74cm. The carbon fiber tripod weighs only 4 lbs /3.8 kg.

Lightweight and extreme stability, together with a fast display in action, are the main features of the ENG tripods.

Height adjustment is performed by a fast, easy to reach clamp and includes a safety lock to prevent accidental falls. The bottom foot includes a threaded spike receiving the adjustable rubber foot and interfaces with dollies and ground spreaders.

The FOCUS Fluid head is the ideal support for the latest DV cameras weighing from 1 to 10 Kg (2.2 to 22 lbs). The FOCUS head comes equipped with a quick release sliding camera plate, illuminated spirit level and orientable pan bar.

Its tilting angle is +/-90 ° with perfect response throughout the entire tilt range. It interfaces with all 100mm bowl base tripods and supports. The extreme ruggedness and versatility together with an outstanding quality/price ratio make the FOCUS the best possible support for NEWS operators and DV videographers.

The CCP732 Spreader is well suited for fast paced ENG and EFP applications. This lightweight telescopic mid-level spreader only adds 1.0 lbs to your tripods weight and allows you a very quick set-up. The quick release attachment requires only a few seconds for installation. (Also Fits the L502 and L504 2-stage tripods)

The Cartoni B433 is a PVC Transport Case for Alfa and Beta 2-Stage and similar size Systems.

Cartoni AL Includes

  • T622/C2 AL Smart Stop ENG Tripod
  • Focus DV Fluid Head CCF100 with 100mm Bowl, Quick Release Sliding Camera Plate, Illuminated Spirit Level & Orientable Pan Bar
  • Mid-Level Tripod Spreader P732 for 2 Stage Tripods
  • Soft Case B433

Cartoni AL Specifications

Material: Carbon Fiber
Tripod Legs: Maximum Height 72" / 162cm
Tripod Legs: Minimum Height 22.6" / 51cm
Tripod Legs: Closed Length Folded: 32.8" / 74cm
Leg Sections 2-Stage
Tripod Legs: Load Capacity 132 lb/ 60 kg
Tripod Legs: Weight 4 lbs / 1.8 kg
Tripod Legs: Bowl Adapter 100mm
Tripod Legs: Spreader/Brace Kit Includes CCP732 Mid-Level Tripod Spreader
Tripod Head: Type Focus Fluid Head
Tripod Head: Weight 4.4 lb (2 kg)
Tripod Head: Load Capacity 22 lb (10 kg)
Tripod Head: Pan / Tilt Pan Range - 360°
Pan Lock - Yes
Pan Drag - Fluid
Tilt Range - 90 to +90°
Tilt Lock - Yes
Tilt Drag - Fluid
Notes Head Counter Balance System - Single Spring Module
Counter Balance Range - 2.2-22 lb (1-10 kg)
Foot Type: Bottom foot includes a threaded spike
Receiving adjustable rubber foot
Interfaces with dollies and ground spreaders
Balance Plate: Yes
Illuminated Leveling Bubble Yes
