Cartoni DV Mini Jib Arm, Supports 30 lbs
See all Cartoni items

Cartoni DV Mini Jib Arm, Supports 30 Lbs.

SKU: CCM100

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2010-03-24T21:00:00

Rated 5 out of 5

Small but great

While small, it is the smoothest jib we carry: we also have GLIDECAM CAMCRANE 200 and a LOSMANDY STANDARD. They are also fine items but for smaller mass cameras and within its stated capacities we find it top-drawer equipment. We've added a heavy duty ground-level spreader and a CARTONI cabon fiber tripod, and with a Delta head (probably over-kill) our customers are very satisfied.

HOLLYWOD L.

Cartoni DV Mini Jib Arm Specifications

  • Warranty :

    Cartoni Five Year Warranty

  • Counter Balance System:

    Four 1" Steel Weight Barbells included

  • Tilt Lock:

    Yes / Pan Lock: Yes

  • Load Capacity:

    33 lbs

  • Weight:

    20 lbs.

  • Pan Range:

    360°

  • Tripod Attachment:

    100mm

  • Head Attachment:

    75mm/100mm

  • Head Arm Leveling:

    Adjustable

  • Leveling Indicators:

    At head end (1)

  • Range of Height:

    39" to 78" (Subject to type of tripod)

  • Fold Down Length:

    39.0"

  • Material of Construction:

    Aluminum /Black Coat Finish

About Cartoni DV Mini Jib Arm

FEATURED REVIEWS

Small but great

By HOLLYWOD L.

While small, it is the smoothest jib we carry: we also have GLIDECAM CAMCRANE 200 and a LOSMANDY STANDARD. They are also fine items but for smaller mass cameras and within its stated capacities we find it top-drawer equipment. We've added a heavy duty ground-level spreader and a CARTONI cabon fiber tripod, and with a Delta head (probably over-kill) our customers are very satisfied.

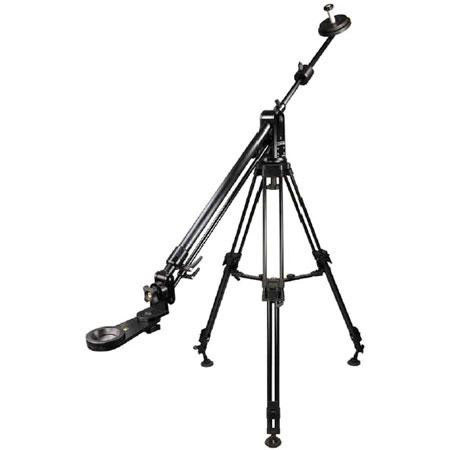

Designed to carry up to 15kg (33 lbs) the CARTONI JIB is one of the most versatile and cost effective lightweight portable jibs. Assembled in less than five minutes the Jib adds the benefit of diagonal tracking and elevation to the traditional pan and tilt movement of a standard Fluid Head.

The JIB weighs only 9 Kg (20 lbs), folds down to 1 meter (39") in length and permits shooting from absolute ground level to 2 meters (78") in height. The rear part of the arm, which holds the counterweights, is extendible to provide for accurate camera balance, while the front telescopic arm allows the Jib to work in wide variety of shooting requirements.

Standard configuration includes a 100mm bowl base head attachment with double orientation, left to right and on/under, spirit level and 10 kg (22 lbs) counterweights. The JIB interfaces with any 100mm bowl base tripod.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • 4
  • One inch Weight Barbells (20-lbs Total Weight)
  • Cartoni Five Year Warranty
