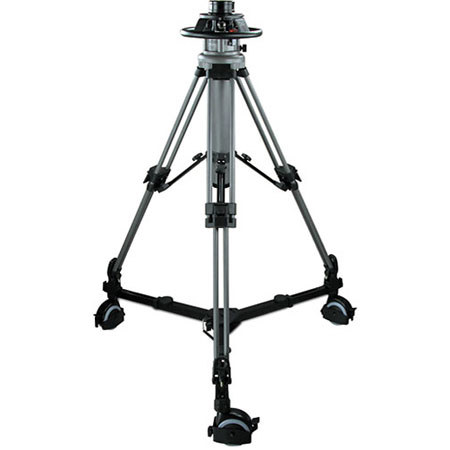

Cartoni P-20 Pedestal System with P-20 Pedestal, Delta Fluid Head and 2 Pan Arms- Supports 48 lbs

SKU: CCP2D201 MFR: P2D201
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$11,995.00 List Price

Our Price

Free Shipping
Add to Wishlist

About the Cartoni P-20

The Cartoni P-20/P2D201 Pedestal System with P-20 Pedestal, Delta Fluid Head and 2 Pan Arms consists of the P-20 Pedestal, the Delta Fluid Head and 2 pan arms. With a load limit of 48 lb (22 kg), this system is targeted for ENG/OB work where mobility is necessary without any compromise in the quality of camera movements.

Ideal for supporting heavy cameras equipped with long focal lenses and top mounted viewfinders, the Delta is manufactured with an extensive use of ultra-light magnesium alloy. The fully variable counterbalance system is designed to accommodate offset payloads ensuring excellent performances at any tilt angle. The Delta features a continuously adjustable fluid damping mechanism providing extremely smooth and precise camera movements.

Standard performances of +70, -60° can be increased to +/- 90° with the optional sliding base plate. Powered by a 9v battery, two digital displays indicate the counterbalance and tilt drag values, while an illuminated spirit level allows easy set-up even in low light conditions. The P20, an extremely rugged and precise dolly and a square shaped central pneumatic column for maximum stability, smoothness and jerk-free operation.

The column supports a maximum payload of 55 lb (25 kg) it includes an air pressure gauge, locking brake and safety air pressure valve adjusted at maximum 187 psi (12.9 bar). The air pressure inside the column can be set in manually and adjusted to suit the exact weight of the camera configuration.

Cartoni P-20 Includes

  • Cartoni P-20 Pedestal
  • Delta Fluid Head
  • Two (2) Pan Arms
  • 100 mm Bowl Base Adaptor
  • Manual Air Pump for Pneumatic Column
  • Cartoni Warranty

Cartoni P-20 Features

  • Fluid head is primarily constructed from magnesium alloy for high strength and low mass, thereby facilitating more dynamic camera moves
  • Fully variable counterbalance and fluid drag systems for precise setup with any given camera package
  • Two digital displays indicate the counterbalance and tilt drag values
  • Illuminated spirit level
  • Pneumatic column for rapid, precise positioning of loads up to 48 lb (22 kg). (Pump is included)
  • Foot operated brake on each of the 100 mm wheels

Cartoni P-20 Specifications

Pedestal Load Capacity 48 lbs (22 kg)
Pedestal Trim Weights No
Pedestal Bowl Diameter/Thread 100 mm
Pedestal Steering Ring Diameter 10.2"
Pedestal Minimum Height 29"
Pedestal Maximum Height 63.3"
Post Stages 1
Post On-Shot Stroke 15.7"
Dolly Doorway Tracking Width 34.2"
Dolly Wheel Diameter 3.9"
Dolly Wheel Lock Yes
Dolly Cable Guards Yes
Pedestal Weight 38.7 lbs (17.5 kg)
Warranty Cartoni warranty
