Cartoni

Cartoni P-20 Pedestal System with P-20 Pedestal and G100 Gamma Fluid Head, Supports 35 lbs

SKU: CCP2G01 MFR: P2G01
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$10,995.00 List Price

Our Price

$10,599.99 $412 per week
Free Shipping
Qty:
Add to Wishlist

About the Cartoni P-20

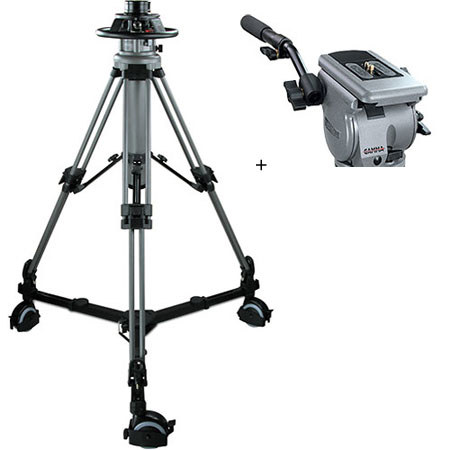

The Cartoni P-20/P2G01 Pedestal System with P-20 Pedestal, Gamma Fluid Head and 2 Pan Arms consists of the P-20 Pedestal, the Gamma fluid head and 2 pan arms. With a load limit of 35 lb (16 kg), this system is targeted for ENG/OB work where mobility is necessary without any compromise in the quality of camera movements. Safe and reliable, the Gamma is specifically designed for ENG configurations up to 16 Kg (35 lb).

Featuring an infinitely variable counterbalance system with easily readable numerical reference, the Gamma provides excellent performances at any angle from +90 to -70°. (For additional tilt matching the -90° angle, an extra long sliding plate is available.) The P20, an extremely rugged and precise dolly and a square shaped central pneumatic column for maximum stability, smoothness and jerk-free operation.

The column supports a maximum payload of 55 lb (25 kg) it includes an air pressure gauge, locking brake and safety air pressure valve adjusted at maximum 187 psi (12.9 bar). The air pressure inside the column can be set in manually and adjusted to suit the exact weight of the camera configuration. Together, the Gamma and the P20 become a no-compromise remote pedestal with all the features and agility a studio camera operator would expect.

Cartoni P-20 Includes

  • Cartoni P-20 Pedestal System
  • P-20 Pedestal
  • Gamma Fluid Head
  • Two (2) Pan Arms
  • 100 mm Bowl Base Adaptor
  • Manual Air Pump for Pneumatic Column
  • Cartoni 5 Years Warranty

Cartoni P-20 Features

  • Fully variable counterbalance and fluid drag systems for precise setup with any given camera package
  • Illuminated spirit level
  • Pneumatic column for rapid, precise positioning of loads up to 48 lb (22 kg). (Pump is included)
  • Foot operated brake on each of the 100 mm wheels

Cartoni P-20 Specifications

Trim Weights No
Bowl Diameter/Thread 100 mm
Steering Ring Diameter 10.2" (260 mm)
Stages 1
On-Shot Stroke 15.7" (40 cm)
Doorway Tracking Width 34.2" (87 cm)
Wheel Diameter 3.9" (100 mm)
Wheel Lock Yes
Cable Guards Yes
Minimum Height 29" (74 cm)
Maximum Height 63.3" (161 cm)
Load Capacity 35 lb (16 kg)
Weight 38.7 lb (17.5 kg)
