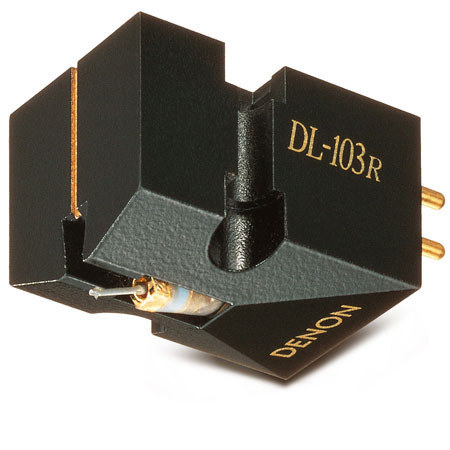

Denon DL-103R Moving Coil Phono Cartridge

Denon
SKU: CCSDL103R MFR: DL-103R

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $24.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $39.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $84.95

Our Price

$379.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Denon DL-103R

The DL-103R is an updated version of the classic DL-103. It provides improved sound by using 6N copper coils wound with precision to the cantilever shaft. Sonic improvements over the DL-103 include heightened detail-extraction, more bass depth and enhanced clarity across the board.

Denon DL-103R Specifications

Output Voltage
0.25 mV (1 kHz, 50 mm/s horizontal direction)
Channel Balance
1 dB max. (1 kHz)
Channel Separation
25 dB min. (1 kHz)
Electrical Impedance
14 ohms ±20%
Compliance
5 x 10-3 m/N (Using a 100 Hz record)
Stylus
0.2 mm square solid diamond
Tracking Force
25 mN ±3 mN (2.5 g ±0.3 g)
Frequency Response
20 Hz to 45 kHz
Load Impedance
100 ohms min. (40 ohms when using a transformer)
Weight
8.5g / 0.29oz
Mfr #
DL-103R
SKU
CCSDL103R
