Chief

Chief CM2L40 Universal Automated Pop-Up Lift for Large Flat-Panel Displays

SKU: CHCM2L40 MFR: CM2L40
Usually ships in 3-5 days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

2,283.95 $89 per week
Free Shipping
Qty:
Add to Wishlist

About the Chief CM2L40

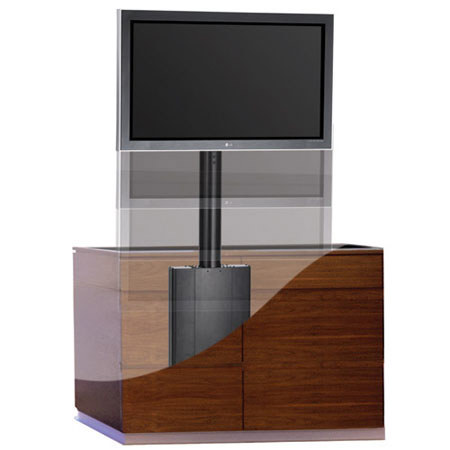

The Chief CM2L40 Universal Automated Pop-Up Lift is used to create a custom installation that permits your display to be hidden when not in use yet lift out into a show position as needed. With the Chief CM2L40 Automated Pop-Up Lift, you can raise or lower your flat panel screen with the press of a button. Designed for flat panel TVs up to 61" or 170 lbs, the CM2L40 provides fast adjustments at over 2" per second.

The lift provides up to 40" of travel with a stored height of only 31" and the exclusive Auto Drive gliding system provides fast and quiet adjustment. Customizable store and show positions allow fine-tuning for any installation and the unique lift design eliminates flat panel TV width constraints. A cable management system makes installation clean and hassle free. Using the required PSB-xxx interface bracket, the CM2L40 can be customized for hundreds of flat panel displays from 32-61" or 170 lbs.

Chief CM2L40 Includes

  • Chief CM2L40 Universal Automated Pop-Up Lift
  • Remote Control
  • 6" Power Cable
  • Chief Warranty

Chief CM2L40 Features

  • Exclusive Auto Drive gliding system provides fast and quiet travel at over 2" (51 mm) per second
  • Telescoping design collapses to a stored height of 31" (790 mm) with approximately 40" (101.6 cm) of travel
  • Multiple control options including serial communication and IR remote (included)
  • Chief's exclusive Q-Latch Mounting System provides increased security with a latching flag, easy to connect and disconnect
  • Unique cable management system allows cables to move freely within the lift
  • Customizable store and show positions allow fine-tuning for any installation
  • Unique lift design eliminates flat panel TV width constraints
  • Ships fully assembled
  • Compatible with 110/120VAC 60 Hz

Chief CM2L40 Specifications

Compatibility 110/120VAC 60 Hz
Center of Display to Floor/Table Range 17" - 63" / 431.8 x 1600.2 mm
Certifications CE Approved, FCC Approved, WEEE Approved
Maximum Extension 71" / 1803.4 mm
Mounting Pattern Compatibility 200 x 200 mm - 862 x 517 mm (Universal Versions)
Orientation Landscape
Solution Type Universal, Custom
Typical Screen Sizes 32" - 61" / 812.8 x 1549.4 mm
Load Capacity 190 lbs / 86.19 kg
Dimensions (H x W x D) 30.6" x 23.8" x 7.7" / 777.24 x 604.52 x 195.58 mm
