Chief KITMD0203 Projector Mount Kit, Includes RSMAU Mini RPA Elite Projector Mount, CMS115 Ceiling Plate, CMS0203 2-3' Adjustable Extension Column

SKU: CHKITMD0203

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Chief KITMD0203 Specifications

  • Universal Projector Mount: Adjustments

    Roll: 3deg.
    Pitch: 15deg.
    Yaw: 360deg.

  • Solution Type

    Universal Projector Mount: Universal

  • Certifications

    Fixed Extension Column: TUV Approved, UL Approved
    Speed Connect Ceiling Plate: TUV Approved, UL Approved

  • Load Capacity

    Universal Projector Mount: 25 lbs / 11.34 kg
    Fixed Extension Column: 500 lbs / 226.80 kg
    Speed Connect Ceiling Plate: 500 lbs / 226.80 kg

  • Dimensions (H x W x D)

    Universal Projector Mount: 1.8" x 4.4" x 5.1" / 45.72 x 111.76 x 129.54 mm
    Fixed Extension Column: 36" x 2.3" x 2.3" / 914.4 x 58.42 x 58.42 mm
    Speed Connect Ceiling Plate: 1.8" x 6.5" x 6.5" / 45.72 x 165.1 x 165.1 mm

3 Accessories for Chief KITMD0203 Projector Mount Kit, Includes RSMAU Mini RPA Elite Projector Mount, CMS115 Ceiling Plate, CMS0203 2-3' Adjustable Extension Column

  • All Accessories (3)
  • Cable Management (1)
  • Gaffer Tape (2)

About Chief KITMD0203

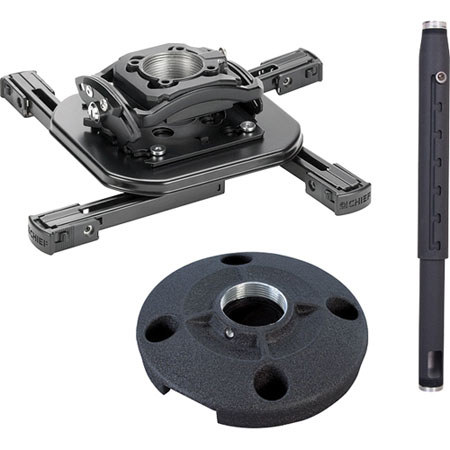

The Chief KITMD0203 Projector Mount Kit includes RSMAU Mini Elite Universal Projector Mount (Lock A), CMS0203 2-3' Adjustable Extension Column and CMS115 speed connect ceiling plate. The RSMAU Mini Elite Universal Projector Mount allows you to easily mount a projector weighing up to 25 lb (11.3 kg). Centris technology allows for fingertip tilting and rotation of the display and automatically adjusts the mount to support different projector weights. MicroZone adjustments allow for quick and precise projector registration.

Integrating a hassle-free cable management system, the clamp mount prevents tangling and damage to the cords and also helps in reducing clutter. The RSMAU Mini Elite mount features a Q-lock quick release lever that can be used for quickly connecting or disconnecting the projector.

Chief KITMD0203 Features

  • RSMAU Mini Elite Universal Projector Mount (Lock A): RSMAU Projector Mount allows you to easily mount a projector weighing up to 25 lb (11.3 kg)
  • RSMAU Mini Elite Universal Projector Mount (Lock A): Centris technology allows for fingertip tilting and rotation of the display and automatically adjusts the mount to support different projector weights
  • RSMAU Mini Elite Universal Projector Mount (Lock A): MicroZone adjustments allow for quick and precise projector registration
  • RSMAU Mini Elite Universal Projector Mount (Lock A): Hassle-free cable management system
  • RSMAU Mini Elite Universal Projector Mount (Lock A): Q-lock quick release lever that can be used for quickly connecting or disconnecting the projector
  • CMS0203 2-3' Adjustable Extension Column: Adjust the height in 1" (24.4 mm)
  • CMS0203 2-3' Adjustable Extension Column: Sports a notched design for adjustment without disassembly
  • CMS0203 2-3' Adjustable Extension Column: Consists of 1.5" NPT column, threaded on both ends
  • CMS0203 2-3' Adjustable Extension Column: Use in combination with any Chief 1.5" NPT ceiling plate or other accessory
  • CMS0203 2-3' Adjustable Extension Column: Includes set screw for add stability
  • CMS115 Speed Connect Ceiling Plate: Provides a clean look and makes installation quick and easy
  • CMS115 Speed Connect Ceiling Plate: Aluminum construction for optimal strength in a lightweight design
  • CMS115 Speed Connect Ceiling Plate: 1.5" NPT compatible
  • CMS115 Speed Connect Ceiling Plate: Integrated cable management - allows cables to exit the top of the plate through the cable exit port
  • CMS115 Speed Connect Ceiling Plate: All-Points Security System exclusive locking hardware at column connection point to protect against theft

Key Features

  • RSMAU Mini Elite Universal Projector Mount (Lock A)
  • CMS0203 2-3' Adjustable Extension Column
  • CMS0203 2-3' Adjustable Extension Column
  • CMS0203 2-3' Adjustable Extension Column
  • CMS115 Speed Connect Ceiling Plate
  • CMS115 Speed Connect Ceiling Plate

What's in the box:

  • Chief RSMAU Mini RPA Elite Projector Mount
  • CMS115 Speed Connect Ceiling Plate
  • CMS0203 2-3' Adjustable Extension Column
  • Chief Warranty
