This item is no longer available.
Review Summary
HDSLR Cameras
16mm (35mm Academy)
6.6mm (2/3")
3.3mm (1/3")
(maximum focal length)
16:9
16:9, 4:3
4 x 5.65"/4 x 4"
2
130mm diameter
15mm
Yes
1.23lb (562g)

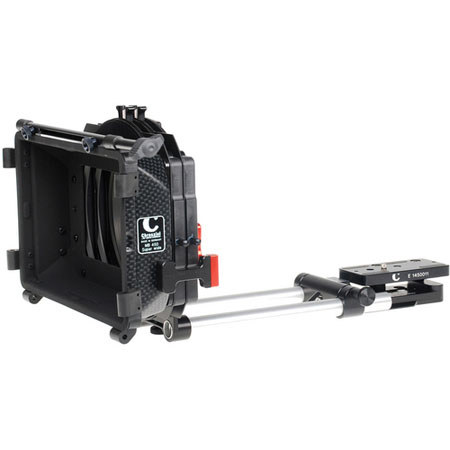

The Chrosziel Matte Box 450W-20 - HDSLR Kit 2 consists of a 450W-20 matte box that offers wide angle (16:9/4:3) housing for lens as wide as 16mm (35mm Academy) and eliminates the effects of vignetting. Equipped with a filter stage for two independently rotating 4 x 5.65/4 x 4 filter holders, the matte box provides sufficient space for adjusting the position of filters.
Using a French flag, the HDSLR Kit 2 controls the angle of light and eliminates lens glare and flare and it can be coupled with optional side wings for accurate light adjustment. To adapt to different HDSLR lens openings, the kit contains a 130:110mm step-down ring, a flexible 110:50-85mm ring made of elastic black polymer and a 130mm rear plate.
Designed for lightweight DV, the DV Studio Rig follow focus comes with a fixed handwheel, easily readable scale, gear drives and gear rings that ensure precise adjustments and optimal use of the lens' adjustable angle. The kit also comes with a focus gear drive and a flexible focus gear ring for precise focusing of lenses.
For a secure mounting, the Matte box 450W-20 includes a center bracket for use with the 15mm lightweight support rods. Using a tightening knob, you can attach the matte box system to the 15mm lightweight support. It includes a pivot mechanism that attaches the optional side wings to the matte box to prevent unwanted light. An optional swing-away bracket, attached to the back of the matte box housing allows for quick and efficient lens changes.
