About the Chief TPS2000

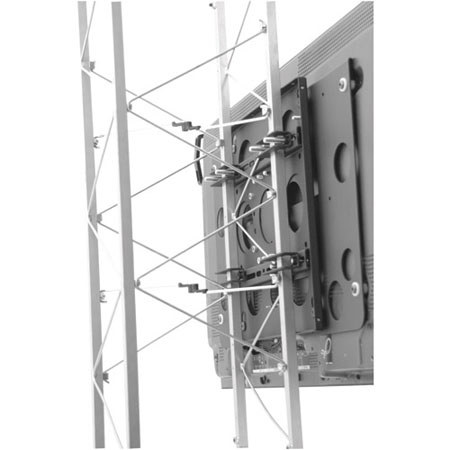

The Chief TPS2000 Large Fixed Truss & Pole Mount is designed for flat panel TV/monitors from 42-71" or up to 150 lbs, the versatile Chief TPS-2000 accommodates a large range of truss and pole dimensions, includes security options and provides flexible features to achieve a custom installation for multiple applications. Perfect for exhibit, retail and digital signage applications, it also includes Chief's Q-Latch mounting system to secure the display with a lockable latch.

Chief TPS2000 Includes

  • Chief TPS2000 Large Fixed Truss & Pole Mount
  • Interface Bracket
  • Plate / Truss
  • 2 x 3/8" Nut / Lock / Stover
  • 2 x 3/8"Washer / Flat
  • 3 x UHMW Washer
  • 2 x Spacer / Nylon
  • Chief Warranty

Chief TPS2000 Features

  • Install on vertical or horizontal truss
  • Attach displays in portrait or landscape orientation
  • TPS/TPP span most truss systems up to 14" (OD)
  • Truss/Pole clamps fit a wide variety of truss and pole dimensions
  • Exclusive Q-Latch Mounting System secures the Large Flat Panel Display with a lockable latch
  • Screen can be installed in portrait or landscape orientation
  • Integrated security allows display to be locked to mount by adding a padlock
  • Compatible with TPK clamp accessories

Chief TPS2000 Specifications

Certifications UL Listed
Construction Steel
Minimum Depth 1.08" (27.4mm)
Mounting Pattern Compatibility 200 x 200mm - 862 x 517mm (Universal Versions)
Orientation Landscape, Portrait
Post-Installation Leveling (Roll) Yes
Solution Type Universal
Typical Screen Sizes 42 - 71" (1066.8 - 1803.4mm)
Load Capacity 150 lbs (68kg)
Dimensions (H x W x D) 16.2 x 17.1 x 1.1" (411.48 x 434.34 x 27.94mm)
