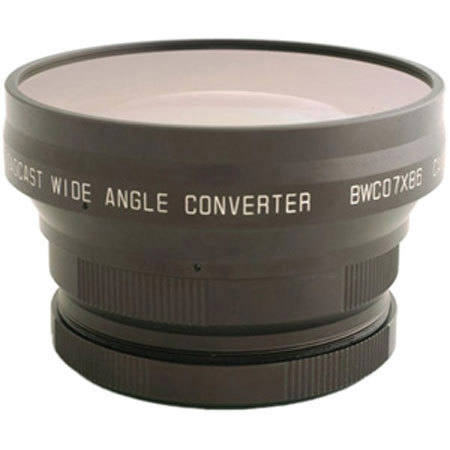

Cavision Broadcast Series 3-Element Zoom-Through 0.7x Converter Lens with Bayonet Mount for Panasonic HVX200
Ways to Save
• The Cavision Broadcast Series 3-Element Zoom-Through 0.7x Converter for the Panasonic HVX200 provides a 30% wider angle of view. It features a Bayonet mount for fast and secure attachment onto HVX200 lens. Additional 9586 Clamp-on mount allows for use with many other lenses It has Full zoom-through capability and is among the Widest converter lenses for broadcast cameras in the world.
What is the differences between Wide Angle Adapters and Wide Angle Converters ?
• Fixed focal adapters lose focus when the focal length on the camera lens is changed (i.e. zooming). For this reason the adapter is not recommended when live zooms are necessary.
• When using an adapter, the normal focusing operation does not function. It is necessary to use the macro focus control instead. For mini-DV cameras that do not have a macro focus control, the lens will typically retain focus from the widest angle to approximately 1/4 of the zoom range.
• With zoom-through converters, normal lens operation is not affected. Focus operations will work the same as before and focus will not be affected when the focal length is changed (i.e. zooming).
|Suitable lens:||Panasonic HVX200 or lens with 85/86mm O.D. (82mm thread)|
|Focus:||Same as usual|
|Aperture:||No light loss|
|Angle of view:||for 2/3" at 8mm: 75°01' X 63°33'|
|Format:||1/3" or 2/3"|
|Suitable Focal Length for 2/3":||8.7mm and up|
|Back mount:||Combination HVX200 Bayonet and 9586 Clamp-on Mount|
|Construction:||3 groups, 3 elements|
|Dimensions:||Ø 120mm X 69mm(h)|
|Optional Accessories:||LH-120 lens hood
Soft lens cap for LH120 (LCS1814)
Clear glass protection filter for LH120 (FTG127)
