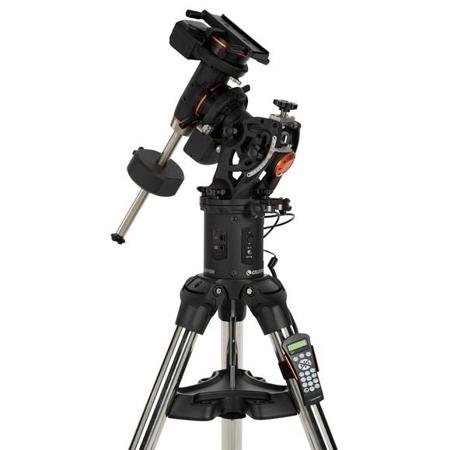

Celestron CGE PRO Computerized German Equatorial Mount with 38 - 55" Adjustable Tripod, Internal Clock
Mfr. Part: 91527 SKU: CNCGEPM
enlarge image
|
|
 |
|
|
|
Item Includes
Celestron CGE PRO Computerized German Equatorial Mount - NexRemote Telescope Control Software - 38 - 55" Adjustable Tripod - Celestron 2 Years Limited Warranty
|
Description
| The Celestron CGE Pro German Equatorial mount is being fully computerized with a database of over 40,000 celestial objects. It features increased payload capacity, all-star polar alignment, no-tool polar alignment, meridian tracking, faster slew speed, power management, pointing and tracking. |
Features
 |
Heavy duty stainless steel tripod adjustable from 38 - 55" |
|
One 22 lbs counterweight |
|
Weighs 154 lbs |
|
Proven NexStar computer control technology |
|
40,000 object database with over 100 user-definable objects and expanded information on over 200 objects |
|
New All-Star Polar Alignment routine for both Northern and Southern Hemispheres. |
|
Software Features include: Database Filter Limits, Hibernate, five alignment methods and user-defined slew limits. |
|
Flash upgradeable hand control software and motor control units for downloading product updates over the Internet |
|
Custom database lists of all the most famous deep-sky objects by name and catalog number; the most beautiful double, triple and quadruple stars; variable star; solar systems; objects and asterisms |
|
Double line, 16-character Liquid Crystal Display Hand Control with backlit LED buttons for easy operation of goto features |
|
12VDC Servo Motors with integrated optical encoders |
|
Permanent programmable periodic error correction (PEC) - corrects for periodic tracking errors inherent to all worm drives |
|
Drive Motors - High quality motors with seven slot skewed armature to minimize magnetic cogging for quiet operation and long life. Precision made cut-steel gears in gearbox for Improve tracking precision. |
|
Bearing and Shaft - Main shafts are made from 1.57" diameter steel tubing with .40" wall thickness with two preloaded 2.68" O.D. tapered roller bearings on each axes |
|
Precision worm drive system - .75" pitch dia. precision made steel worm preloaded with two .87" OD ball bearings to minimize run-out (a source of periodic error). 255 tooth 6" pitch dia. precision made worm wheel with enveloping brass teeth |
|
Spring loaded DEC worm to minimize backlash and for easy guiding. |
|
4 point RA and DEC clutch system for no-slip pointing precision |
|
Autoguide port, PC port and auxiliary ports located on the electronic pier for long exposure astrophotography |
|
One 4.72" O.D. thrust bearing and one 4.13" O.D. thrust bearing on each axes provide a large thrust surface for additional stability. |
|
Rugged 9-pin thread on motor cables |
|
Latitude range: 10° to 65° northern or southern hemispheres |
|
RS-232 communication port on hand control to control the telescope via a personal computer |
|
Includes NexRemote telescope control software, for advanced control of your telescope via computer |
|
GPS-compatible with optional CN16 GPS Accessory (93967) |
Specifications
| Payload Capacity | 90 lb (40.82 kg) |
| Motor Drive | DC Servo motors with encoders, both axes |
| Computer Hand Control | Double line, 16 character Liquid Crystal Display; 19 backlit LED buttons |
| Slew Speeds | Nine slew speeds 5.5 deg/s, 2 deg/s, 0.5 deg/s, 64x, 16x, 8x, 4x, 1x, 0.5x |
| Tracking Rates | Sidereal, Solar and Lunar |
| Tracking Modes | EQ North and EQ South |
| Alignment Procedures | 2-Star Align, Solar System Align, Last Alignment, Quick Align, 1-Star Align, |
| Database | 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects |
| Power Requirements | 12 VDC 2A |
| Internal Clock | Yes |
| GPS | Optional CN-16 GPS Accessory |
| Tripod and Pier Weight | 52 lb (23.59 kg) |
| EQ Mount Weight | 75 lb (34.02 kg) |
| Counterweight Bar | 5 lb (2.27 kg) |
| Counterweights | 1 x 22 lb |
| Weight | 154 lbs |
| Warranty | Celestron 2 years limited warranty |
| | |
|
|
|
|
|
|
|
|
|
|
