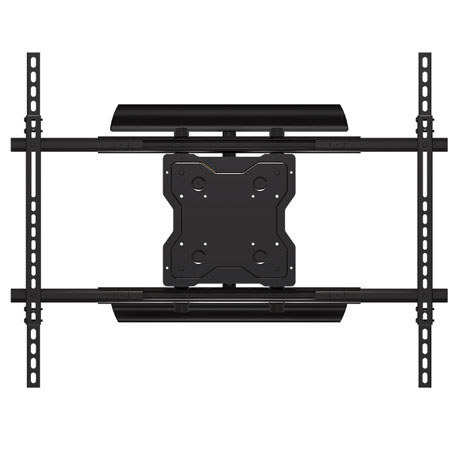

Crimson AV A55 Articulating Mount for 37-55"+ Flat Panel Screens

Crimson AV
Crimson AV A55: Picture 1 thumbnail Crimson AV A55: Picture 2 thumbnail Crimson AV A55: Picture 3 thumbnail

About Crimson AV A55

Multiple joint arms hold screen 3.5" from wall when retracted and 27" when fully extended. Smooth tilt adjustments of +15deg. (forward) and -15deg. (back) with a locking knob and 6deg. side-to-side roll facilitates a variety of viewing angles and perfect screen positioning. Makes a secure installation quick and easy, simply hang the screen and turn the pre-assembled securing screws to lock in place. Integrated cable management for clean look.

Crimson AV A55 Features

  • Universal design
  • VESA compatible
  • Lateral shift allows for perfect placement
  • Pre-tensioned tilt mechanism for smooth adjustment
  • Post installation screen leveling without use of tools
  • Integrated cable management for clean look
  • Pre-sorted hardware pack for easy installation to wood studs or concrete surfaces included

Crimson AV A55 Specifications

TV Size Range
37" - 55"+
Max Mounting Pattern
VESA Mounting Patterns
100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm
Depth From Wall
3.5" (89mm)
Max Extension
27" (685.8mm)
Roll (side to side)
Mounting Surface
Wood Stud, Concrete Or Cinder Block
Stud Spacing
Dual Stud 16" On Center
Aluminum/High-Grade Cold Rolled Steel
Scratch Resistant Epoxy Powder Coat
Weight Capacity
150lbs / 68.03kg
22.7lbs / 10.3kg
