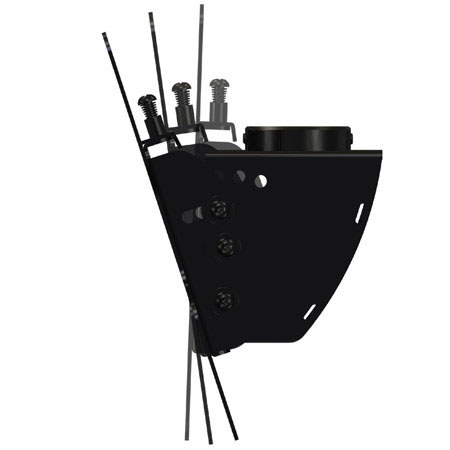

Crimson AV C37 Ceiling Mount Box & VESA Screen Adaptor Assembly for 13-37" Screens, 80lbs Load Capacity

Crimson AV
Crimson AV C37: Picture 1 thumbnail Crimson AV C37: Picture 2 thumbnail

About Crimson AV C37

Attaches to standard 1.5" threaded extension columns. The Crimson C37 can be used as retrofit on existing columns or combine with Crimson E-series fixed extensions or EA-series adjustable extensions and CA ceiling adapters to complete the solution. Continuous tilt of 20deg. forward with 360deg. rotation. Makes a secure screen installation quick and easy, simply hang the screen and turn the pre-assembled securing screw to lock the VESA adapter in place. Compatible with all 1.5" NPT threaded pipe.

Crimson AV C37 Features

  • VESA compatible 75x75mm, 100x100mm, 200x100mm, 200x200mm
  • Fast and easy installation
  • Pre-assembled securing screw
  • Up to 20deg. of continuous tilt and 360deg. rotation
  • Mounts to any 1.5" NPT threaded pipe

Crimson AV C37 Specifications

TV Size Range
13-37"
Max Mounting Pattern
200x200mm
Vesa Mounting Patterns
75x75mm, 100x100mm, 200x100mm, 200x200mm
Tilt
+20deg./-0deg.
Rotation (yaw)
360deg.
1.5" Npt Thread Compatible
Yes
Mounting Interface
1.5" Npt Thread Compatible
Construction
High-grade Cold Rolled Steel
Finish
Scratch Resistant Epoxy Powder Coat
Load Capacity
80lbs (36kg)
Weight
4lbs (1.8kg)
