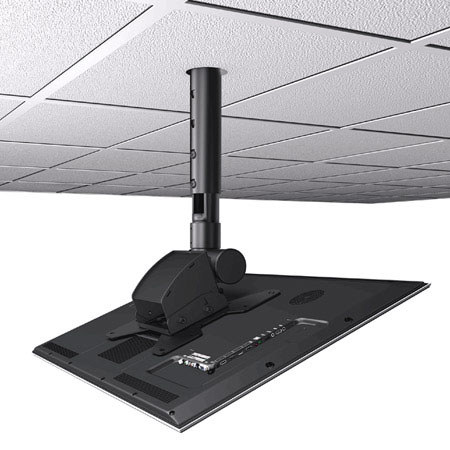

Crimson AV CXT42 Ceiling Mount for 13-37" Flat Panel Screens with Extreme Tilt Up to 90deg.

Crimson AV
Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Crimson AV CXT42

Includes mount hardware and 1.5" thread connector for attaching to E or EA 1.5" threaded columns. Mounting interface is VESA from 100x100mm through 200x200mm. Optional AD400 adapter extends mounting pattern through 400x400mm. Combine with Crimson E-series fixed extensions or EA-series adjustable extensions and CA ceiling adapters to complete the solution. Perfect for digital signage, dentist offices or medical centers.

Crimson AV CXT42 Features

  • VESA compatible 75x75mm, 100x100mm, 200x100mm, 200x200mm
  • Screen mounts perpendicular to floor in portrait or landscape orientation
  • Tilt has flexibility to achieve multiple viewing angles
  • Can be used to replace ceiling tile with TV screen
  • Installs include digital signage, dentist offices or medical centers

Crimson AV CXT42 Specifications

TV Size Range
13" - 37"
Max Mounting Pattern
VESA Mounting Patterns
75x75mm, 100x100mm, 200x100mm, 200x200mm
Up to 90deg.
Rotation (Yaw)
1.5" NPT Thread Compatible
Mounting Interface
1.5" NPT Thread Compatible
High-Grade Cold Rolled Steel
Scratch Resistant Epoxy Powder Coat
Weight Capacity
80lbs / 36.3kg
4lbs / 1.8kg
