Crown Audio 14M Pre-amplifier/Mixer with 4 Inputs & 1 Output Channel

Crown Audio
Crown Audio 14M Mixers & Amplifier: Picture 1 thumbnail Crown Audio 14M Mixers & Amplifier: Picture 2 thumbnail Crown Audio 14M Mixers & Amplifier: Picture 3 thumbnail

List Price: $414.75

Free Shipping

See all shipping options

In Stock Online Usually ships within 1-2 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $24.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $39.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $84.95
18% Off

Our Price

$339.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Crown Audio 14M Mixers & Amplifier

The Crown Audio 14M is a part of the Commercial Audio Series. It is a rack-mountable preamplifier/mixer ideal for use in factories, schools, hospitals, restaurants, offices and other venues. It features four mic/line inputs with stereo RCA jacks and balanced phoenix-type connectors and a single output with a balanced phoenix-type connector. Priority muting is included for paging. Individual volume, bass and treble controls are provided for each input. LED signal indicators are provided for each input and the output.

Crown Audio 14M Mixers & Amplifier Features

  • Four input channels, each with stereo RCA jacks and balanced phoenix-type connectors
  • One output channel with a balanced phoenix-type connector
  • Priority muting for paging
  • Signal indicator LEDs
  • Level, bass and treble controls for each input
  • Phantom power

Crown Audio 14M Mixers & Amplifier Specifications

Frequency Response
20Hz - 20kHz
Signal to Noise Ratio
100dB
Total Harmonic Distortion (THD)
0.05% (Typical)
Input Sensitivity
Balanced Mic: 3mV
Balanced Line: 800mV
RCA: 400mV
Input Impedance
Mic: 400 ohms
Line: 100 k ohms
RCA: 50 k ohms
Crosstalk
-50dB
Output Level
1.2V
Phantom Power
15VDC

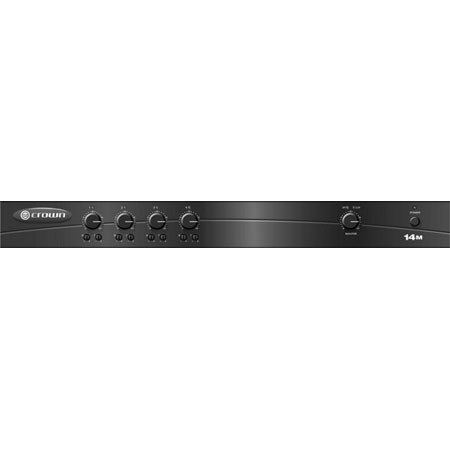

Controls Front Panel
1 x Power Switch
4 x Input Volume Control Knobs
4 x Bass Controls
4 x Treble Controls
1 x Output Volume Control Knob

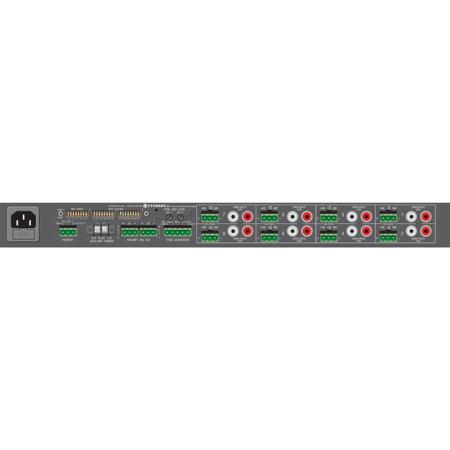

Controls Rear Panel
1 x Mixer Config. DIP Switch (For Priority Muting and Phantom Power)
4 x Mic/Line Selector Switches
1 x Output Tone Control Potentiometer
Indicators
Green LEDs for Input and Output Signals on Front Panel
Red Clip Indicator LED
Blue Power Indicator LED
Connectors
1 x AC Power Inlet
1 x 2-Position Terminal Strip (24VDC Backup Power)
1 x 3-Pin Phoenix Connector for Priority Muting
1 x 3-Pin Balanced Phoenix Output Connector
1 x 5-Pin Phoenix Connector for Tone Generator
4 x Balanced 3-Pin Phoenix Input Connectors
4 x RCA Stereo Input Pairs (8 Jacks Total)
Dimensions (WxHxD)
19 x 1.75 x 10.7" (483 x 45 x 272mm)
Weight
8.7 lbs (3.9kg)
