Crown Audio CTs-1200 CTs Series Amplifier with 600 Watt per Channel, 2-Channel Amplifier 8/4/2 Ohm Loads or 70/140V Outputs

Crown Audio
SKU: CRWCTS1200 MFR: CTS1200

List Price: $2,098.11

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $69.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $94.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $249.95
25% Off

Our Price

$1,573.58
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Ways To Save

Product Highlights

  • 2 Channels
  • 600
  • 600 Watts per Channel

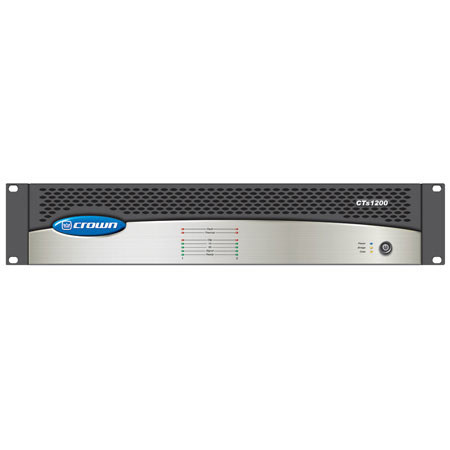

Crown Audio CTs-1200: Picture 1 regular $1,573.58

About Crown Audio CTs-1200

The Crown Audio CTs-1200 is a 2-Channel power amplifier housed in a 2-space rackmount frame, offering power levels and features meant to serve fixed installation sound applications. This amplifier is notable for a completely independent array of switches and indicators for each channel, including high and low impedance operation, input sensitivity, high pass filters and an advanced level of well designed overload protection circuitry.

Crown Audio CTs-1200 Features

  • High-power, 2-channel, 2U rackmount amplifier for installed sound applications
  • Switching power supply lowers overall amplifier weight
  • Direct 70V/100V/140V/200V constant-voltage or 2/4/8 Ohm low-impedance operation
  • Independently selectable Input Sensitivity switching per channel
  • Rear panel Programmable Input Processor(PIP2) connector accepts accessory expansion modules for specific custom installation requirements
  • Thermal Level Control(TLC) circuitry protects amplifier from overheating; engages input compressor, dynamically reducing input gain when individual channels overheat
  • Junction Temperature Simulation(JTS) quick-activation circuitry limits drive level of output devices to tolerable range if excess power is required; protects output transistors without shutting down channel
  • Continuously variable fan cooling; venting with front-to-rear forced airflow
  • Removable balanced terminal block input connectors with "Y" switch
  • Switchable high pass filter per channel, eliminates step down transformer saturation in distributed systems
  • Complete array of front panel function and warning indicator LED's for each channel
  • Complete array of rear panel function and filter switches
  • Power on indicator flashes when AC mains are under or over voltage
  • Advanced protection circuitry covers shorted outputs, DC, mismatched loads, overheating, high frequency overloads, voltage fluctuation and internal faults.

Crown Audio CTs-1200 Specifications

Power Rating
600 Watts @ 8 Ohms, Dual (Per Channel)
Damping Factor
10 Hz - 100 Hz:>3000
Input Sensitivity
Switchable:
1.4V(8/4 Ohms)
26 dB Gain:
2.46V(4 Ohm Load)
3.47V (8 Ohm Load)
1.4V(70V)
Input Impedance
10 kOhms balanced(nominal), 5 kOhms unbalanced(nominal)
Gain
50:1 (34 dB)
Frequency Response
20 Hz - 20 kHz +/-0.25 dB @ 1 Watt
Signal-to-Noise Ratio
105 dB A-Weighted, below rated power(20 Hz - 20 kHz)
Total Harmonic Distortion (THD)
< 0.1%, at full rated power (20 Hz - 20 kHz)
Input Connections
2 x Balanced 3-Pin Terminal Block Connectors(one per channel)
Output Connectors
1 x 4-Pole Terminal Strip(Ch 1, Ch 2)
Controls Front Panel
1 x Power Switch
Controls (Rear)
1 x Reset Switch
1 x Rotary Channel Level Control(per channel)
1 x 2-Position Operation Mode Switch
1 x Highpass Filter Switch(per channel)
1 x "Y" Input Switch
1 x Interior 3-Position Input Sensitivity Switch(per channel)
Indicators
Front Panel:
1 x Yellow LED Bridge Mode Indicator
1 x Green LED Ready Indicator
3 x Green LED Signal Indicators(per channel)
1 x Red LED Clip Indicator(per channel)
1 x Red LED Thermal Indicator(per channel)
1 x Red LED Fault Indicator
1 x Yellow LED Data Indicator(per channel)
1 x Blue LED Power Indicator
Back Panel: No Indicators on Back Panel
Cooling
Continuously Variable Speed Fans
Ventilation Grille(Front),Cooling Vents(Back)
Front-to-Rear forced airflow
Power Consumption
24 Watts (120 VAC Mains)
Specialties
Variable Speed Fan Cooling
Thermal Level Control
JTS Limiting Circuitry
Dimensions
19 x 3.5 x 14.25" (483 x 89 x 362mm)
Weight
23.4 lb (10.6 kg)
Mfr #
CTS1200
SKU
CRWCTS1200
