Crown Audio

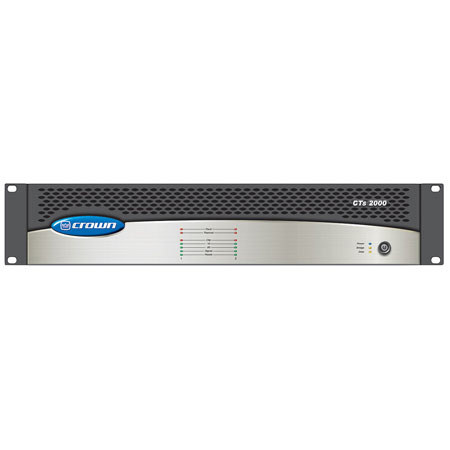

Crown Audio CTS2000USP4CN 2-Channel High Power Amplifier with PIP2 support

SKU: CRWCTS2U4CN MFR: CTS2000USP4CN
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 5 - 7 Business days from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$3,880.49
Free Shipping
Qty:

Add to Wishlist

Protect your investment

About the Crown Audio CTS2000USP4CN

Crown Audio's CTS2000USP4CN 2-Channel Pro Power Amplifier provide exceptional performance, flexibility and value for installed sound applications. Crown Audio's CTS2000USP4CN amplifier features independent selection of high and low impedance operation for a specific channel, plus power levels and features that were carefully chosen to match the requirements of fixed install design. Easy integration with HiQnet and CobraNet allows this amplifier to deliver a comprehensive lineup of monitoring and control features along with digital audio transport for an award-winning digital audio solution.

Crown Audio CTS2000USP4CN Features

  • High power-density, with all two-channel models in a 2U chassis
  • Crown Switching Power Supply for lighter weight
  • Input sensitivity Independently selectable for each channel
  • TLC protection circuitry protects the amplifier from long-term excessive heat by subtly and dynamically reducing the gain only when necessary
  • Switchable high-pass filter for each channel provides low-frequency roll off to eliminate step down transformer saturation when used in distributed systems
  • Comprehensive array of indicators including Power, Data and Bridge, along with Ready, Signal, Clip, Thermal and Fault for each channel, provide accurate diagnostics

Crown Audio CTS2000USP4CN Specifications

Channels 2
Sensitivity 1.4V
Signal to Noise Ratio 105dB (below rated power 20Hz to 20kHz, A-Weighted)
Total Harmonic Distortion < 0.35% (full rated power,20Hz - 20kHz)
Damping Factor <3000 (10 Hz to 100Hz)
Frequency Response ± 0.25dB (at 1W into 4/8 ohms)
Crosstalk > 80dB
Common Mode Rejection (20Hz to 1Khz) > 50dB
Maximum Input Level +20dBu (before input compression)
Load Impedance 70V, 100V (2-16 Ohms)
Voltage Gain 35:1 (31dB) (at maximum level settings) (8/4 ohm operation)
Power Rating 2-ohm dual (per ch.): 1000W
4-ohm dual (per ch.): 1000W
8-ohm dual (per ch.): 1000W
16-ohm dual (per ch.): 625W
70V dual (per ch.): 1000W
100V dual (per ch.): 1000W
4-ohm bridge: 2000W
8-ohm bridge: 2000W
16-ohm bridge: 2000W
140V bridge: 2000W
200V bridge: 2000W
Power Draw at Idle 35W
Dimensions (W x H x D) 19 x 3.5 x 14.25 in / 48.3 x 8.9 x 36.2 cm
Weight 22.8 lbs / 10.34 kg
