Crown Audio

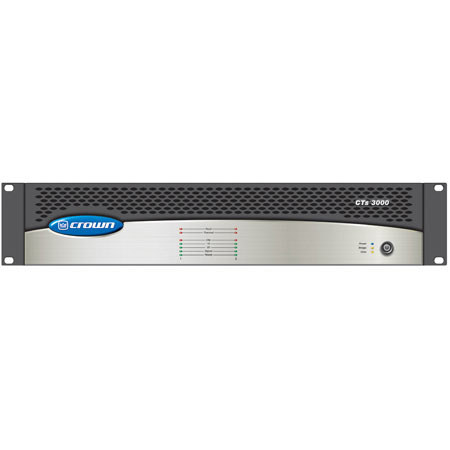

Crown Audio CTs-3000-LITE CTs Series 2-Channel Amplifier with 1200 Watt 8 Ohm/1500 Watt 4 Ohm per Channel, 70/140V with PIP-LITE Card

SKU: CRWCTS3000LT MFR: CTS3000LITE
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 5 - 7 Business days from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$4,148.56
Free Shipping
Qty:

Add to Wishlist

Protect your investment

About the Crown Audio CTs-3000-LITE

The Crown Audio CTs-3000 is a 2-Channel power amplifier housed in a 2-space rackmount frame, offering power levels and features meant to serve fixed installation sound applications. This amplifier is notable for a completely independent array of switches and indicators for each channel, including high and low impedance operation, input sensitivity, high pass filters and an advanced level of well designed overload protection circuitry. This unit includes a PIP-LITE module for networked controlling via either HiQnet and System Architect or TCP/IQ and IQwic.

Crown Audio CTs-3000-LITE Includes

  • Crown Audio CTs-3000-LITE CTs Series 2-Channel Amplifier
  • Power Cable
  • Owner's Manual
  • Crown Audio 3 Year Warranty

Crown Audio CTs-3000-LITE Features

  • High-power, 2-channel, 2U rackmount amplifier for installed sound applications
  • Switching power supply lowers overall amplifier weight
  • Direct 70V/100V/140V/200V constant-voltage or 2/4/8 Ohm low-impedance operation
  • Independently selectable Input Sensitivity switching per channel
  • Rear panel Programmable Input Processor(PIP2) connector accepts accessory expansion modules for specific custom installation requirements
  • Thermal Level Control(TLC) circuitry protects amplifier from overheating; engages input compressor, dynamically reducing input gain when individual channels overheat
  • Junction Temperature Simulation(JTS) quick-activation circuitry limits drive level of output devices to tolerable range if excess power is required; protects output transistors without shutting down channel
  • Continuously variable fan cooling; venting with front-to-rear forced airflow
  • Removable balanced terminal block input connectors with "Y" switch
  • Switchable high pass filter per channel, eliminates step down transformer saturation in distributed systems
  • Complete array of front panel function and warning indicator LEDs for each channel
  • Complete array of rear panel function and filter switches
  • Power on indicator flashes when AC mains are under or over voltage
  • Advanced protection circuitry covers shorted outputs, DC, mismatched loads, overheating, high frequency overloads, voltage fluctuation and internal faults.

Crown Audio CTs-3000-LITE Specifications

Output Power 2 ohm Dual (Per Channel): 1500W
4 ohm Dual (Per Channel): 1500W
8 ohm Dual (Per Channel): 1250W
16 ohm Dual (Per Channel): 625W
70V Dual (Per Channel): 1500W
100V Dual (Per Channel): 1500W
4 ohm Bridge: 3000W
8 ohm Bridge: 3000W
16 ohm Bridge: 2500W
140V Bridge: 3000W
200V Bridge: 3000W
Damping Factor 10 Hz - 100 Hz:>3000
Input Sensitivity Switchable:
1.4V(8/4 Ohms)
26 dB Gain:
2.46V(4 Ohm Load)
3.47V (8 Ohm Load)
1.4V(70V)
Input Impedance 10 kOhms balanced(nominal), 5 kOhms unbalanced(nominal)
Gain 71.4:1 (37 dB)
Frequency Response 20 Hz - 20 kHz +/-0.25 dB @ 1 Watt
Signal-to-Noise Ratio 105 dB A-Weighted, below rated power(20 Hz - 20 kHz)
Total Harmonic Distortion (THD) < 0.35%, at full rated power (20 Hz - 20 kHz)
Input Connections 2 x Balanced 3-Pin Terminal Block Connectors(one per channel)
Output Connectors 1 x 4-Pole Terminal Strip(Ch 1, Ch 2)
Controls Front Panel 1 x Power Switch
Controls (Rear) 1 x Reset Switch
1 x Rotary Channel Level Control(per channel)
1 x 2-Position Operation Mode Switch
1 x Highpass Filter Switch(per channel)
1 x "Y" Input Switch
1 x Interior 3-Position Input Sensitivity Switch(per channel)
Indicators Front Panel:
1 x Yellow LED Bridge Mode Indicator
1 x Green LED Ready Indicator
3 x Green LED Signal Indicators(per channel)
1 x Red LED Clip Indicator(per channel)
1 x Red LED Thermal Indicator(per channel)
1 x Red LED Fault Indicator
1 x Yellow LED Data Indicator(per channel)
1 x Blue LED Power Indicator
Back Panel: No Indicators on Back Panel
Cooling Continuously Variable Speed Fans
Ventilation Grille(Front),Cooling Vents(Back)
Front-to-Rear forced airflow
Power Consumption 35 Watts (120 VAC Mains)
Specialties Variable Speed Fan Cooling
Thermal Level Control
JTS Limiting Circuitry
Dimensions (WxHxD) 19 x 3.5 x 14.25" (483 x 89 x 362mm)
Weight 27.7 lb (12.6 kg)
