Crown Audio

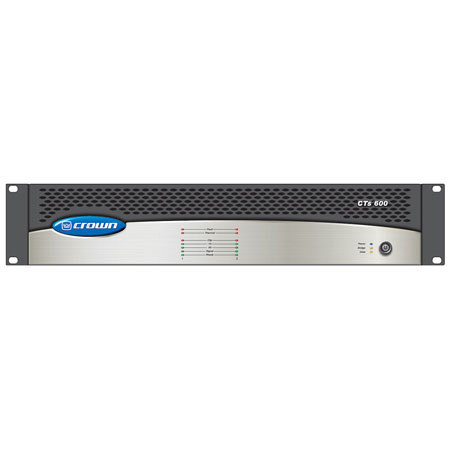

Crown Audio CTS600USP4CN 2-Channel High Power Amplifier with PIP2 support

SKU: CRWCTS6U4CN MFR: CTS600USP4CN
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 5 - 7 Business days from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$2,650.17
Free Shipping
Qty:

Add to Wishlist

Protect your investment

About the Crown Audio CTS600USP4CN

Crown Audio's CTS600USP4CN 2-Channel Pro Power Amplifier provide exceptional performance, flexibility and value for installed sound applications. Crown Audio's CTS600USP4CN amplifier features independent selection of high and low impedance operation for a specific channel, plus power levels and features that were carefully chosen to match the requirements of fixed install design. Easy integration with HiQnet and CobraNet allows this amplifier to deliver a comprehensive lineup of monitoring and control features along with digital audio transport for an award-winning digital audio solution.

Crown Audio CTS600USP4CN Specifications

Channels 2
Sensitivity 1.4V
Signal to Noise Ratio 105dB (below rated power 20Hz to 20kHz, A-Weighted)
Total Harmonic Distortion < 0.1% (full rated power,20Hz - 20kHz)
Damping Factor <3000 (10 Hz to 100Hz)
Frequency Response ± 0.25dB (at 1W into 4/8 ohms)
Crosstalk > 80dB
Common Mode Rejection (20Hz to 1Khz) > 50dB
Maximum Input Level +20dBu (before input compression)
Load Impedance 70V, 100V (2-16 Ohms)
Voltage Gain 35:1 (31dB) (at maximum level settings) (8/4 ohm operation)
Power Draw at Idle 24W
Power Rating 2-ohm dual (per ch.): 150W
4-ohm dual (per ch.): 300W
8-ohm dual (per ch.): 300W
16-ohm dual (per ch.): 300W
70V dual (per ch.): 300W
100V dual (per ch.): 300W
4-ohm bridge: 300W
8-ohm bridge: 600W
16-ohm bridge: 600W
140V bridge: 600W
200V bridge: 600W
Dimensions (W x H x D) 19 x 3.5 x 14.25 in / 48.3 x 8.9 x 36.2 cm
Weight 22.8 lbs / 10.34 kg
