About the Crown Audio CTs-8200AUSP/CN

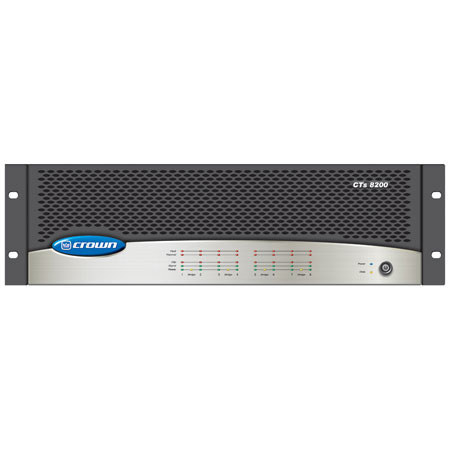

The Crown Audio CTs 8200AUSP/CN is an 8-channel networkable power amplifier with built-in DSP processing, housed in a 3RU rack, designed for fixed installation use.

The CTs 8200AUSP/CN features multiple simultaneous channel operation modes, 70 volt and 100 volt support, a switching power supply and a variable speed fan cooling system. There is a comprehensive set of front panel indicators for each channel, along with advanced, well-designed thermal protection and fault isolation circuitry. The rear panel offers individual channel level trim controls and 4-position operating mode switches.

The CTs 8200AUSP/CN offers a progressive design and advanced features for a moderate price per channel and represents a viable solution for budget-conscious commercial, theatrical, educational and houses of worship installations.

Crown Audio CTs-8200AUSP/CN Includes

  • Crown Audio CTs-8200AUSP/CN CTs Series 8-Channel 160 W/Ch 8 Ohm Amplifier
  • Power Cable
  • Owner's Manual
  • Crown Audio 3 Year Warranty

Crown Audio CTs-8200AUSP/CN Features

  • 8-channel installation power amplifier in 3 RU rackmount enclosure with 160W of power per channel at 8 ohms
  • Built-in 3rd generation networkable DSP processor with realtime audio routing, input compressors, filters, delay, multi-mode output limiting and more
  • Built-in noise and sine wave generators for masking and testing
  • Requires downloadable Harman Pro System Architect Software
  • Crown switching power supply for reduced weight
  • Selectable constant voltage 70V/100V or 4/8 ohm low impedance operation per channel pair with dedicated 4-position switches
  • Multi Mode output topology allows for simultaneous dual and bridged operation
  • FIT(Fault Isolation Topology) circuitry isolates faulty channels; adjacent channels remain unaffected
  • TLC thermal protection circuitry engages internal channel compressor, dynamically reduces amplifier gain to reduce heat levels and prevent overheating
  • Front-to-rear forced airflow cooling vents, continuously variable speed fan cooling
  • Automatically inserted 35 Hz high-pass filter for channel pair in 70/100 Volt operation
  • Advanced protection circuitry includes guards against shorted outputs, open circuits, mismatched loads, general overheating, DC, under/over voltage, high frequency overloads and internal faults
  • Comprehensive front panel indicator array includes individual channel LED's for Bridge, Ready, Signal, Clip, Thermal and Fault; dedicated Power and Data indicators
  • Blue power indicator LED flashes when amplifier shuts down during under/over voltage condition on AC mains

Crown Audio CTs-8200AUSP/CN Specifications

Power Rating - A Dual, 8 Channels Driven:
200W @ 4 ohms (per channel)
160W @ 8 ohms (per channel)
200W @ 70V (per channel)
Dual, 1 Channel Driven:
270W @ 4 ohms (per channel)
220W @ 8 ohms (per channel)
250W @ 70V (per channel)
Power Rating - B Bridge-Mono, 4 Channel Pairs Driven:
400W @ 8 ohms (per channel pair)
320W @ 16 ohms (per channel pair)
200W @ 100V (per channel pair)
Bridge-Mono, 1 Channel Pair Driven:
540W @ 8 ohms (per channel pair)
440W @ 16 ohms (per channel pair)
250W @ 100V (per channel pair)
Damping Factor 10 Hz - 400 Hz: >180
Input Sensitivity 1.4V
Input Impedance 20 kOhms balanced(nominal)
10 kOhms unbalanced(nominal)
Gain 4/8 ohm Operation: 20:1(26 dB)
70V Operation: 50:1(34 dB)
100V Operation: 71.4:1(37 dB)
Frequency Response 20 Hz - 20 kHz +/-0.5 dB @ 1W
Signal-to-Noise Ratio 100 dB unweighted(20 Hz - 20 kHz, below rated power)
Total Harmonic Distortion (THD) <0.05% @1W, from 20 Hz - 20 kHz
Input Connections 4 x Removable Phoenix Balanced Barrier Blocks
Output Connectors 4 x 4-pole Terminal Strips with Touch-Proof Covers
Controls Front Panel 1 x Power Switch
Controls (Rear) 8 x 21-position Rotary Channel Level Trim Controls(-70 - 0 dB)
4 x 4-position Dual/Bridge Mode Switches
Indicators Front Panel:
4 x Yellow LED Bridge Mode Indicators
8 x Green LED Ready Indicators
8 x Green LED Input Signal Indicators
8 x Red LED Thermal Indicators
8 x Red LED Fault Indicators
1 x Yellow LED IQ Loop Data Indicator
1 x Blue LED Power Indicator
Rear Panel: None
Cooling Continuously Variable Speed Forced Air, Front to Back Airflow
Power Consumption 58W, Idle, All Channels 4/8 ohm Mode
77W, Idle, All Channels 70V Mode
Specialties 8-channel Rackmount Installation Amplifier
4 Switchable Modes include 70 and 100V Operation
Variable Speed Fan Cooling
Dimensions 19 x 5.25 x 16.25" (483 x 133 x 413mm)
Weight 36.6 lb (16.5 kg)
