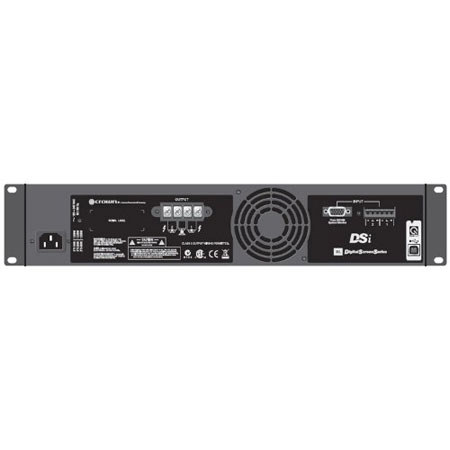

Crown Audio DSi-1000, 2-Channel 500 Watt per Channel Cinema Amplifier with On-board DSP, USB HiQnet Connectivity

Crown Audio
SKU: CRWDSI1000 MFR: DSI1000
Crown Audio DSi-1000: Picture 1 thumbnail Crown Audio DSi-1000: Picture 2 thumbnail
Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $39.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $55.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $59.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $154.95

Our Price

$900.89
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Crown Audio DSi-1000

The Crown Audio DSi-1000 2-Channel Amplifier offers outstanding quality and performance in a rack-mountable steel design, ideal for cinema use. The amplifier has presets for industry-standard JBL loudspeaker systems, which are set up quickly and easily thanks to an intuitive backlit LCD. A USB connection allows you to connect to a computer to configure HiQnet System Architect software.

Onboard digital signal processing includes crossovers, EQ filters, delay and output limiting. A rear-panel HD-15 connector provides connectivity between DSi amplifiers and the DSi-8M System Monitor. The switch-mode universal power supply gives the DSi-1000 terrific power flexibility.

Crown Audio DSi-1000 Features

  • Presets for popular JBL cinema speaker systems
  • Front-panel LCD guides you through the setup process
  • Onboard digital signal processing
  • USB connectivity
  • Switch-mode universal power supply
  • Compatible with HiQnet System Architect software

Crown Audio DSi-1000 Specifications

Output Power
700W @ 2 Ohm Stereo (per channel)
500W @ 4 Ohm Stereo (per channel)
275W @ 8 Ohm Stereo (per channel)
1400W @ 4 Ohm Bridged-Mono
1000W @ 8 Ohm Bridged-Mono
Damping Factor
Better than 500 from 20 Hz to 500 Hz
Input Sensitivity
2.35V @ 8 ohms
2.24V @ 4 ohms
1.88V @ 2 ohms
Input Impedance
20 k ohms (Balanced)
Gain
26 dB
Frequency Response
20Hz - 20kHz
Signal-to-Noise Ratio
105 dB
Total Harmonic Distortion (THD)
0.5% - 1.0%
Input Connections
2 x Removable Phoenix-Type Connectors (Balanced Line Level)
Output Connectors
4-Position Barrier Strip with Connections for Dual Loudspeakers or for a Bridge-Mono Loudspeaker
Controls Front Panel
Level, Power Switch, Select/Previous/Next Buttons
Controls (Rear)
No
Indicators
Backlit LCD Display, Green/Red/Blue LEDs
Cooling
Proportional Speed Fan with Front-to-Rear Airflow
Power Consumption
100V, 120V, 220-240V, 50/60 Hz
Power Requirements
100V, 120V-240V, 50/60 Hz
Specialties
HiQnet USB Connector, HD-15 Connector, Overload Protection, Built-In DSP
Dimensions (WxHxD)
19 x 3.5 x 12.25" (483 x 89 x 311 mm)
Weight
19 lbs (8.6 kg)
