Crown Audio

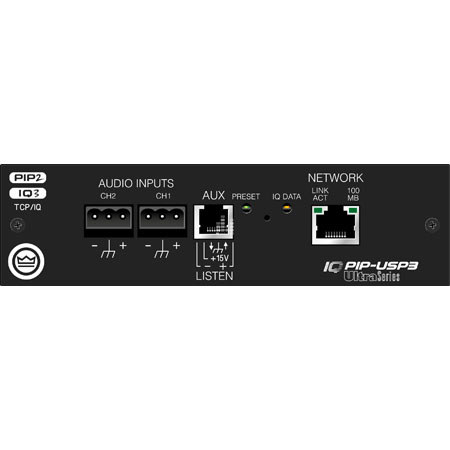

Crown Audio IQ3USP3 PIP-USP3 DSP PIP Module, 20Hz-20kHz Frequency Response

SKU: CRWIQ3USP3 MFR: IQ3USP3
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$967.05 $38 per week
Free Expedited Shipping
Qty:
Add to Wishlist

About the Crown Audio IQ3USP3

The Crown Audio PIP-USP3 is a versatile speaker-processing module that mounts directly into your Crown amplifier. This DSP-based PIP module integrates into your 100Mb Ethernet network via TCP/IQ protocol and offers up to 32 filters per channel, as well as automatic load supervision. The module has Phoenix-type audio input connectors for easy signal connection. Other features of the unit include compressing, limiting, a delay of up to two seconds per channel and generators for noise and sine waves. When installed in a CT-series amplifier, the module can also provide line voltage monitoring.

Crown Audio IQ3USP3 Features

  • Mounts in your amplifier to save rack space
  • Single-plug solution for TCP/IQ control and monitoring in a 100Mb Ethernet network
  • Phoenix-type audio input connectors
  • 24-bit conversion with 32-bit floating point DSP processing
  • Nine different filter types and 64 assignable filters
  • Up to two seconds of delay available per channel
  • Compressors and limiters for each channel
  • Noise and sine wave generators
  • Load supervision
  • 10 selectable presets
  • Error reporting
  • Firmware can be upgraded over the network
  • Internal flash memory provides backup of all parameters

Crown Audio IQ3USP3 Specifications

Frequency Response 20Hz-20kHz ±0.5dB
Dynamic Range >105dB (A-weighted, 20Hz-20kHz)
Connectors 2 x Phoenix-Type Audio Inputs
1 x RJ45 Network Jack
1 x RJ11 Aux Jack
Maximum Input Level +20dBu
Crosstalk (Main Outputs) > 60dB at 1kHz
THD & Noise < 0.05% THD+N, 20Hz-20kHz
