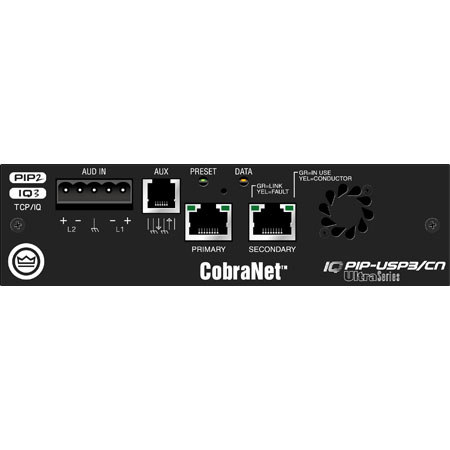

Crown Audio PIP-USP3/CN DSP PIP Module with CobraNet
Crown Audio

Crown Audio PIP-USP3/CN DSP PIP Module with CobraNet, 20Hz-20kHz Frequency Response

SKU: CRWIQ3USP3C MFR: IQ3USP3CN
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$1,870.05
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

The Crown Audio PIP-USP3/CN is a versatile speaker-processing module that mounts directly into your Crown amplifier. This DSP-based PIP module integrates into your 100Mb Ethernet network for CobraNet audio and TCP/IQ control and monitoring and offers up to 32 filters per channel, as well as automatic load supervision.

The module has Phoenix-type audio input connectors for easy signal connection. The inputs allow CobraNet audio input, audio backup, or emergency override of CobraNet audio. Other features of the unit include compressing, limiting, a delay of up to two seconds per channel and generators for noise and sine waves. When installed in a CT-series amplifier, the module can also provide line voltage monitoring.

Key Features

  • Mounts in your amplifier to save rack space
  • Single-plug solution for CobraNet audio and TCP/IQ control and monitoring in a 100Mb Ethernet network
  • Phoenix-type audio input connectors
  • Audio inputs allow CobraNet network audio input, CobraNet audio backup, or a hard wire emergency override of CobraNet audio
  • 24-bit conversion with 32-bit floating point DSP processing
  • Nine different filter types and 64 assignable filters
  • Up to two seconds of delay available per channel
  • Compressors and limiters for each channel
  • Noise and sine wave generators
  • Load supervision
  • 10 selectable presets
  • Error reporting
  • Firmware can be upgraded over the network
  • Internal flash memory provides backup of all parameters

Technical Specs

Frequency Response 20Hz-20kHz ±0.5dB
Dynamic Range >105dB (A-weighted, 20Hz-20kHz)
Connectors 1 x Two-Channel Phoenix-Type Audio Input
2 x RJ45 Network Jacks
1 x RJ11 Aux Jack
Maximum Input Level +20dBu
Crosstalk (Main Outputs) > 60dB at 1kHz
THD & Noise < 0.05% THD+N, 20Hz-20kHz
