Crown Audio MCVCA8 Level Control Module
Crown Audio

Crown Audio MCVCA8 Level Control Module for CTs 8200 Power Amplifier

SKU: CRWMCVCA8 MFR: MCVCA8
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$253.05
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

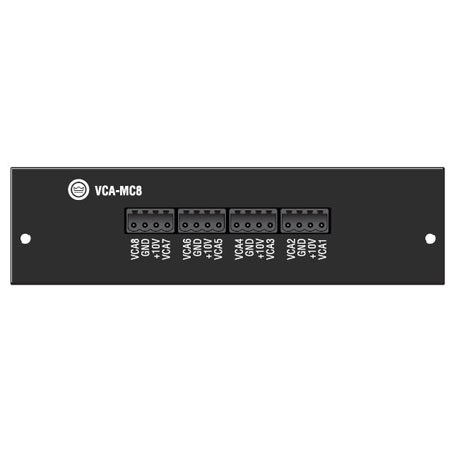

The Crown Audio MCVCA8 is a level control module designed to be used in conjunction with the CTs 8200 amplifier. The module has four 4-pin removable barrier connectors to provide control voltage, ground and control lines to the amplifier. Wall control units are available separately that can be used to control the level of your amplifier remotely.

Key Features

  • Independent remote Level control for each Channel
  • 4-pin removable Phoenix-style barrier connectors provide the +10VDC control Voltage, Ground and control lines for two Amplifier channels
  • Optional wall-mount Level control panels for use with VCA modules: 1-VCAP and 4-VCAP

Technical Specs

Connectors 4 x 4-Pin Removable Terminal Blocks
Control Voltage 0 to +10VDC Between GND and VCD
Dimensions (H x W) 2.5 x 5.5" (64 x 140mm)
Weight 5 oz (142g)
