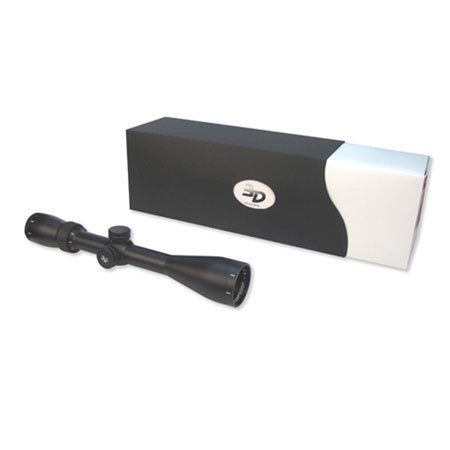

The 3D Series 4.5-14 x 44mm Riflescope from Carson is designed to be extremely rugged and dependable, yet lightweight to carry. The 3D Series Riflescopes advanced optical systems provide crystal clear images with exceptional Depth and Dimension. They feature fully multicoated lenses that allow maximum light transmission, even in low light conditions.
The 3D Series Riflescope (4.5-14 x 44mm with Multiplex Reticle) feature one-piece/1-inch aluminum tube construction to reduce weight. The 3D Series Riflescope provide for a 1/4" MOA (minute of angle) adjustment and windage/elevation adjustments. Eye relief is a comfortable 4." The 3D Series Riflescope are all shockproof, waterproof and fog proof, which allow superior performance in all outdoor conditions and terrain.
|Magnification||4.5x - 14x|
|Objective / Field of View||44mm / 23.1' (7.7m) @ 4.5x at 100 yds.(100m), 7.8' (2.6m) @ 14x at 100 yds.(100m)|
|Main (Center) Tube Diameter||1.0"|
|Objective Tube Diameter||1.9"|
|Eyepiece Tube Diameter||Not Specified by Manufacturer|
|Lens Coatings||Fully Multi Coated Optics|
|Reticle Image Plane (Magnifying)||Second|
|Exterior Finish||Matte Black|
|Windage & Elevation Adjustments (MOA)||1/4-M.O.A. Per Click|
|Maximum Adjustment||60 MOA W & E|
|Exit Pupil||9.78mm @ 4.5x, 3.1mm @ 14x|
|Eye Relief||3.9" / 99.1mm @ 4.5x, 3.9" / 99.1mm @ 14x|
|Parallax Correction Control||100 Yards|
|Diopter Adjustment||Not Specified by Manufacturer|
|Nitrogen Filled||Nitrogen filled|
|Waterproof / Fogproof||Yes|
|Mounting Length||Not Specified by Manufacturer|
|Weight||16.0 oz., 453.6g|
|Special Features||Reticle Image in the Second Focal Plane.
Designed by Outdoorsman for Outdoorsman
