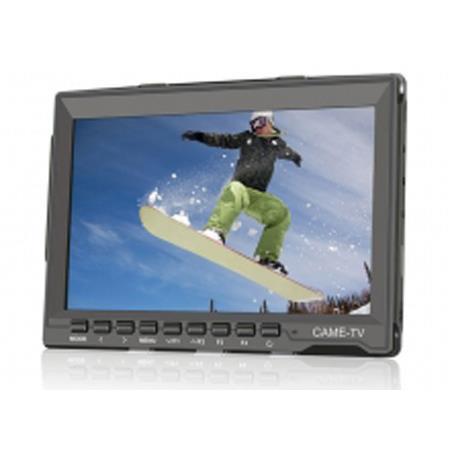

Came-TV Peaking Focus Assist 7" IPS HDMI Field Monitor, 1280x800
See all Came-TV items

Came-TV Peaking Focus Assist 7" IPS HDMI Field Monitor, 1280x800

SKU: CT701HDMI

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Came-TV 701-HDMI Specifications

  • Resolution

    1280x800 pixels

  • Dot pitch

    H x V: 0.11775x0.11775

  • Aspect ratio

    16:10

  • Brightness

    400cd/m2

  • Contrast

    800:1

  • Viewing Angle

    89 deg. /89 deg. (L/R)
    89 deg. /89 deg. (U/D)

  • Backlight

    LED

  • HDMI Support Mode

    480i/480p/576i/576p
    720p(60/59.94/50/30/29/25/24/23.98)
    1080i(60/59.94/50
    1080p(60/59.94/50/30/29.97/25/24/24fps/23.98/23.98fps)

  • Input

    1x HDMI
    1x Video
    1x Audio

  • Output

    1x OSD Controller

  • Audio

    1x Speaker
    1x Ear Phone Slot

  • Power

    Takes Sony NP-F970 batteries (not included)

  • Power Consumption

    5W

  • Input Voltage

    5.5-35V

  • Working Temperature

    -20 to 50 deg. C / -4 to 122 deg. F

  • Storage Temperature

    -30 to 60 deg. C / -22 to 140 deg. F

  • Install Way

    1/4"-20 Thread Socket (1 bottom side)

  • Dimensions (L x W x H)

    176 x 130 x 17mm / 6.93 x 5.12 x 0.67"

  • Weight

    0.4kg / 0.88lbs

  • UPC Code

    717080142796

About Came-TV 701-HDMI

IPS
White color panel and 1280x800 resolution ensure the monitor more precise color restoration exquisite picture quality and more rich color.

• Camera 5D II Mode (Zoom in)
• Peaking Focus Assist: 1. Red-outline peaking focus based on Mono background
• Takes Sony NP-F970 batteries (not included)
• Pixel-to-Pixel
• Image Flip (U/D, L/R)
• Check Field (Red, Green, Blue, Mono)
• Center Marker
• Screen Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
• 4:3 & 16:9 image adjustable
• Image Freeze

Include HDMI and AV
Support most DSLRs and camcorders (a7s, GH4, BMPCC).

HDMI Lock
In order to avoid affecting the shooting from bad connection while use HDMI format for HD signal transmission (actually this problem happens frequently), therefore, they specially designed HDMI lock to ensure the safety of signal transmission.

Collapsible sunshade is included for easier viewing in bright environments.

Note:

The battery is not included (takes Sony NP-F970 batteries).

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Came-TV Peaking Focus Assist 7 " IPS HDMI Field Monitor
  • Collapsable Sunshade
  • (Battery Not Included)
  • Came-TV 1 Year Warranty
