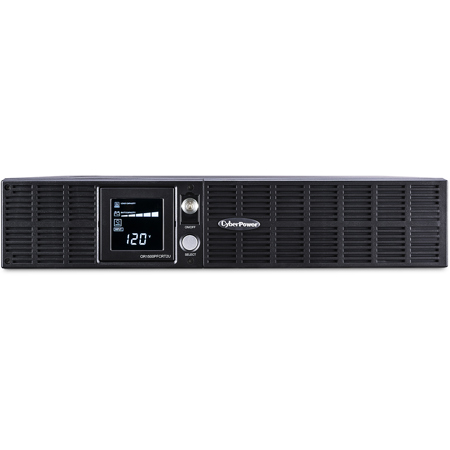

CyberPower OR1500PFCRT2U Smart App Intelligent LCD 1500VA UPS, 8 Outlets, 2U Rack Mount

CyberPower OR1500PFCRT2U: Picture 1 thumbnail CyberPower OR1500PFCRT2U: Picture 2 thumbnail CyberPower OR1500PFCRT2U: Picture 3 thumbnail CyberPower OR1500PFCRT2U: Picture 4 thumbnail CyberPower OR1500PFCRT2U: Picture 5 thumbnail CyberPower OR1500PFCRT2U: Picture 6 thumbnail

See all shipping options

In Stock Online - Usually ships in 1-2 Days learn more

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About CyberPower OR1500PFCRT2U

The CyberPower OR1500PFCRT2U PFC Sinewave UPS System with pure sine wave output and multifunction LCD safeguards networking hardware, networked-based devices, small office servers, workstations and telecom equipment that use conventional and Active Power Factor Correction (PFC) power supplies. Its automatic voltage regulation (AVR) topology delivers clean and consistent AC power, protecting connected equipment and preventing business interruptions.

CyberPower's OR1500PFCRT2U, with pure sine wave, solves the critical compatibility issues of non-sine wave UPS products working with computing systems using Active PFC power supplies (ENERGY STAR 5.0). CyberPower's innovative UPS technology ensures equipment utilizing Active PFC power supplies do not unexpectedly shutdown when switching from AC power to UPS battery power.

The OR1500PFCRT2U unit has a capacity of 1500VA/900Watts, eight (8) NEMA 5-15R receptacles and four (4) maintenance-free, user-replaceable 12V/7Ah batteries. The rotatable front LCD panel displays all major UPS vitals for ease of use. This unit offers connectivity via one (1) HID USB and two (2) DB9 serial ports. Protection for phone/network (RJ11/RJ45) and cable/coax (RG-6) is included. EMI/RFI filters increase the immunity of the load to noise disturbances.

This UPS incorporates microprocessor-based digital control and includes PowerPanel Business Edition providing the user unsurpassed flexibility and agent/client control of up to 25 clients. An optional SNMP / HTTP Remote Management adapter (RMCARD202) supports remote management and control of the OR1500PFCRT2U through a standard web browser.

CyberPower OR1500PFCRT2U Features

  • Pure Sine Wave: When operating on battery, the PFC Sinewave UPS outputs power with a pure sine wave that is identical to or cleaner than the power from the utility company grid, free of harmonic distortion and electrical noise, resulting in optimal line clarity
  • Microprocessor-Based Digital Control: Digital routing is maintained through a network of integrated circuitry and discrete values that are used for internal system processing, which significantly increases efficiency and responsiveness
  • RM/T Configuration: The unit can be installed in either a Tower or Rack Mount (2U) configuration
  • AVR: Automatic Voltage Regulation increases low voltages and decreases high voltages, without switching to battery-mode. This conserves battery life and delivers power with a more stable and consistent voltage to connected equipment
  • EMI/RFI Filters: Filters against electromagnetic interference and radio frequency interference ensuring clean power for connected equipment
  • Dual PC Support: The unit has two (2) serial communication ports to connect two PCs or servers, giving the user full control and the ability to prioritize their operation
  • Multi-function Rotatable LCD: UPS battery status and power conditions are easily viewed on this white LCD panel when the UPS is rack mounted or standing as a tower
  • Audible Alarms: Distinctive tones identify when the unit is running on battery power, if it is overloaded, or when the battery is low
  • Resettable Circuit Breaker: Convenient unit reset switch in case of an overload
  • Metal Housing: Rugged, industrial-grade metal construction allows for installation of the unit in demanding environments
  • PowerPanel Business Edition: This software suite manages the power for all servers and computers supported by the UPS on a network. Features include application/OS shutdown, event logging, hibernation mode, internal reports and analysis, remote management capability of power control
  • Windows Compatibility: The PowerPanel power management software has been fully tested and is compatible with Windows 2000, 2003, XP 32/64, Vista 32/64, 7 and Server 2008

CyberPower OR1500PFCRT2U Specifications

UPS Topology
Line-Interactive (AVR)
Energy Saving
Yes - GreenPower UPS Bypass Technology
Input Voltage
90V AC - 140V AC
Input Frequency
47Hz - 63Hz
Input Plug Type
NEMA 5-15P
Input Plug Style
Right angle
Input Cord Length
10 feet
1500 VA / 900 Watts
Automatic Voltage Regulation
On Battery Voltage
120V AC +/- 5%
On Battery Frequency
50/60Hz +/- 1%
On Battery Waveform
Sine Wave
Overload Protection
Internal circuitry limiting / circuit breaker
Outlet Type
NEMA 5-15R
Outlets - Battery & Surge Protected
Transfer Time
Battery Runtime at Half Load (min)
Battery Runtime at Full Load (min)
Battery Type
Sealed lead acid
Battery Size
Battery User Replaceable
Battery Hot Swappable
Battery Typical Recharge Time
8 Hours
Replacement Battery
BB Battery - BP7-12 or SH1228WFR
Battery Quantity
Surge Suppression
1,840 Joules
Phone / Ethernet RJ11 / RJ45
1-In, 1-Out (Combo)
Coax Protection RG6
1-In, 1-Out
Multifunction LCD Diagnostic Display
Toggle Status Display includes: Current/Load Level, Runtime, Battery Level, AVR In Use, Battery In Use, Input Voltage, Output Voltage, Output Frequency, Overload, Wiring Fault, Silent Mode
HID Compliant USB Port
Serial Port
Yes (2x)
Management Cable
USB Cable, Serial Cable (2)
LED Indicators
Power on, wiring fault
Audible Alarms
On battery, low battery, overload
PowerPanel Business Edition
SNMP / HTTP Remote Monitoring
Yes, with optional RMCARD202
Emergency Power Off (EPO) Port
Form Factor
Operating Temperature
32 deg. F to 95 deg. F / 0 deg. C to 35 deg. C
Operating Humidity
0% - 90% non-condensing
UL1778, cUL 107.3, FCC DOC Class B
ROHS Compliant
Rack Size
Dimensions (W x H x D)
17" x 3.5" x 15.3" / 43.18 x 8.89 x 38.86 cm
55.5 lbs/25.17kg
